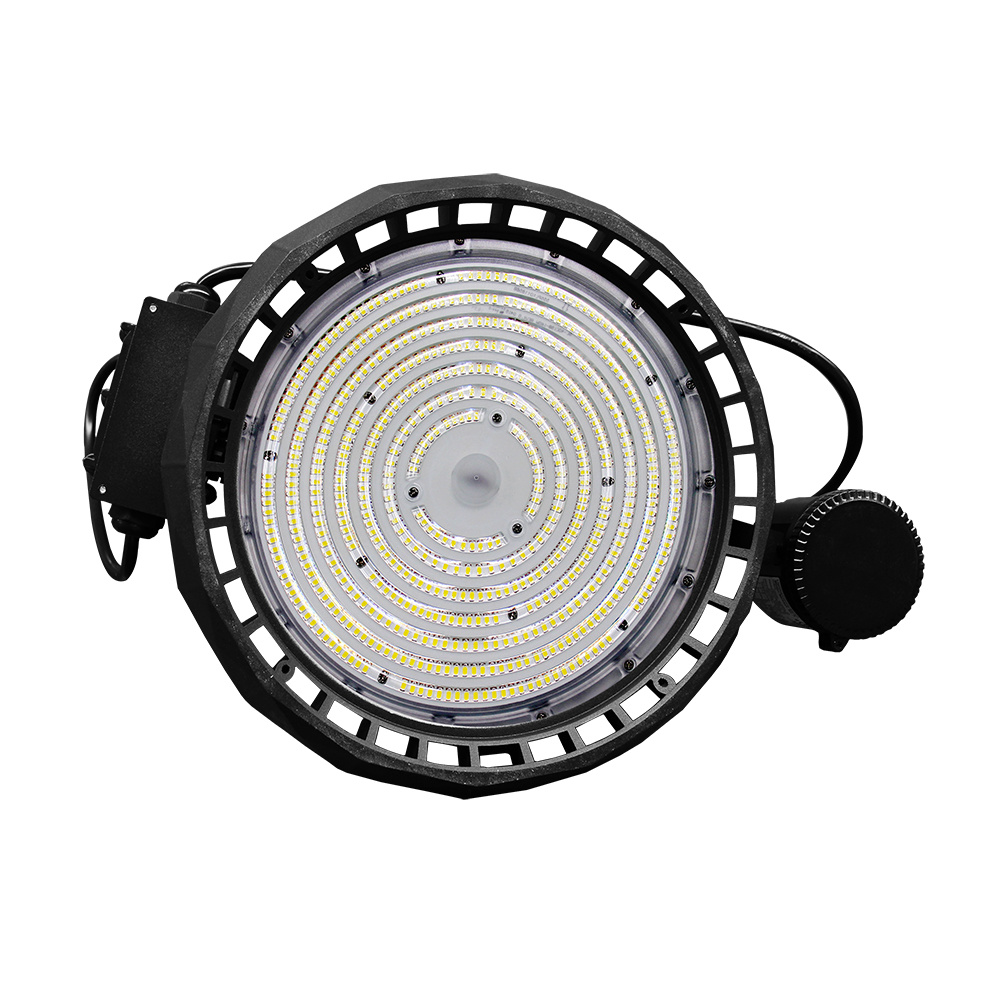

Saturn LED High Bay with Motion Detector and Twilight Switch - 240 Watts 43,200 lumens (190lm/W) - 5700K daylight white - 120° - IP65 waterproof - Dimmable
HOFTRONICSKU: 553576
Product information
Saturn LED High Bay with Motion Detector and Twilight Switch - 240 Watts 43,200 lumens (190lm/W) - 5700K daylight white - 120° - IP65 waterproof - Dimmable
Product information
Saturn LED High Bay with Motion Detector and Twilight Switch - 240W 43,200lm - 5700K - 120
This professional LED high bay lamp has a power consumption of only 240 watts. The light output is extremely high with, no less than 43,200 lumens to illuminate all large and high spaces. The efficiency of this LED high bay is unique with a light output of no less than 190 lumens per watt (190lm/W), which are achieved by the high performance Bridgelux LEDs. This gives you the highest possible efficiency in the market.
• Dimmable
The high bay has a motion sensor and is dimmable, so you light only where necessary. For example, you light corridors at 10% and workspaces up to 100%.
• Saving 84 % (190 lm/W)
This LED high bay shines with an efficiency of 190 lumens per watt. This is an energy saving of up to 84 % in comparison to your current lighting.

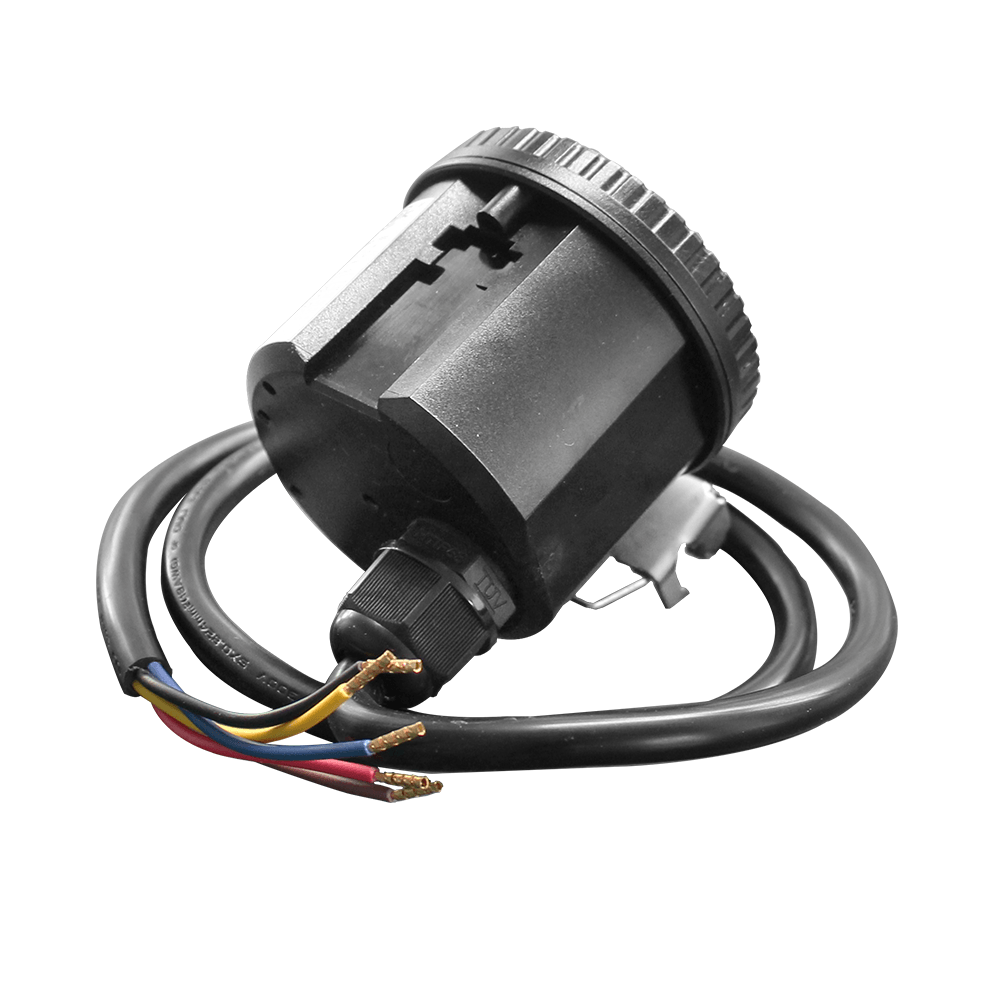

• 2-in-1 sensor: motion and twilight sensor
The sensor under the lamp combines motion and twilight sensors. The lamp turns on when there is movement (1-8 meters) or low light intensity in the environment.
• Dust- and splash-proof - IP65
This IP rating protects against dust and splashing water from all directions. Ideal for dusty or humid environments such as cold rooms, freezers and garages.
• 0.95 Power factor
With a power factor of 0.95, this lamp supplies only 5% reactive current. As a result only 5% additional load is placed on the connected group. Ideal for projects and large installations.
• Optimal heat conduction
The enormous light output of this high bay means that the lamp heats up quickly. Fortunately, the unique cyclonic design ensures that this heat is quickly dissipated.
• Daylight white light colour - 5700K
This bright light colour is often chosen for areas where people work all day. Examples include workshops, warehouses and depots. Can best be described as a bright working light colour.
• 5-year warranty
You will receive a comprehensive 5-year all-in warranty on this LED high bay. Defective products will be replaced completely free of charge within these 5 years. Buying without worries.
Saturn LED High Bay with Motion Detector and Twilight Switch - 240W 43,200lm - 5700K - 120
This professional LED high bay lamp has a power consumption of only 240 watts. The light output is extremely high with, no less than 43,200 lumens to illuminate all large and high spaces. The efficiency of this LED high bay is unique with a light output of no less than 190 lumens per watt (190lm/W), which are achieved by the high performance Bridgelux LEDs. This gives you the highest possible efficiency in the market.
• Dimmable
The high bay has a motion sensor and is dimmable, so you light only where necessary. For example, you light corridors at 10% and workspaces up to 100%.
• Saving 84 % (190 lm/W)
This LED high bay shines with an efficiency of 190 lumens per watt. This is an energy saving of up to 84 % in comparison to your current lighting.
• 2-in-1 sensor: motion and twilight sensor
The sensor under the lamp combines motion and twilight sensors. The lamp turns on when there is movement (1-8 meters) or low light intensity in the environment.
• Dust- and splash-proof - IP65
This IP rating protects against dust and splashing water from all directions. Ideal for dusty or humid environments such as cold rooms, freezers and garages.
• 0.95 Power factor
With a power factor of 0.95, this lamp supplies only 5% reactive current. As a result only 5% additional load is placed on the connected group. Ideal for projects and large installations.
• Optimal heat conduction
The enormous light output of this high bay means that the lamp heats up quickly. Fortunately, the unique cyclonic design ensures that this heat is quickly dissipated.
• Daylight white light colour - 5700K
This bright light colour is often chosen for areas where people work all day. Examples include workshops, warehouses and depots. Can best be described as a bright working light colour.
• 5-year warranty
You will receive a comprehensive 5-year all-in warranty on this LED high bay. Defective products will be replaced completely free of charge within these 5 years. Buying without worries.
Key specifications
All specifications
Key specifications
| IP rate | IP65 |
|---|---|
| Workingvoltage | 230 V |
| Output current | 1500 mA |
| Operating-temperature | -20°C ~ +45°C |
| Total luminous flux | 45600 lm |
| Equivalent wattage | 1000 W |
| Light direction | Downlight |
| Wattage | 240 W |
Key specifications
| IP rate | IP65 |
|---|---|
| Workingvoltage | 230 V |
| Output current | 1500 mA |
| Operating-temperature | -20°C ~ +45°C |
| Total luminous flux | 45600 lm |
| Equivalent wattage | 1000 W |
| Light direction | Downlight |
| Wattage | 240 W |
| Lens material | Polycarbonate (PC) |
| Powerfactor | >0.95 |
| Frequency | 50/60Hz |
General
| EAN | 7439628553576 |
|---|---|
| Brand | HOFTRONIC |
| Warranty | 5 year |
| Certifications | CE, RoHs, SAA |
| Warranty exemption | Not installed or used according to the manual |
Installation
| Ground wire | Yes |
|---|---|
| Placement type | Ceiling |
| Connection voltage | 220-240V AC |
| Suitable for indoor outdoor | Indoor & outdoor |
| Suggested ceiling height | >8 Meter |
Dimensions & weights
| Width | 325 mm |
|---|---|
| Height | 176 mm |
| Length | 325 mm |
| Cable length | 100 cm |
Packaging
| Packaging type | Box |
|---|---|
| Packaging width | 380 mm |
| Packaging height | 185 mm |
| Packaging length | 380 mm |
| Quantity in packaging | 1 |
| Quantity mastercarton | 1 |
| Packaging weight | 4500 g |
Light source
| CRI | >70Ra |
|---|---|
| LB factor | L90B50 |
| Lightsource replaceable | No |
| Number of light points | 1 |
| Switching cycles | 100000 |
| Lumen per watt | 190 Lm/W |
| Energy label |  |
| Light color | Daylight white |
| Flickerfree | Yes |
| Light type | Direct |
| Beam angle | 120 ° |
| Lifespan | 50000 h |
| Dimmable | Yes |
| Amount LEDs | 731 |
Color and material
| Color | Black |
|---|---|
| Material | Aluminum |
| Diffuser material | Polycarbonate (PC) |
| Diffuser finishing | Transparent |
Sensor
| Delay time | 5s/30s/1min/3min/20min/30min |
|---|---|
| Type sensor | Motion and daylight sensor 2-in-1 |
| Detection angle | 150 ° |
| Light sensitivity | <5-150 LUX (adjustable) |
| Sensor changeable | Yes |
| Detection distance | 7 m |
| Detection movement speed | 0.3-1 m/s |
| Dusk sensor overwrite mode | No |
| Sensor settings adjustable | Yes |
Other specifications
| IK-Value | IK10 |
|---|---|
| Inrush current | 88 A |
| Dimming technique | 1-10V |
| Inrush current duration | 12 μs |
