Saturn LED High Bay - Dimmable - 90 Watts 17.100 lumens (190lm/W) - 5700K daylight white - 120° - IP65 waterproof - Energy label A - Bridgelux LEDs
HOFTRONICSKU: 5437526
Product information
Saturn LED High Bay - Dimmable - 90 Watts 17.100 lumens (190lm/W) - 5700K daylight white - 120° - IP65 waterproof - Energy label A - Bridgelux LEDs
Product information
Saturn LED High Bay - 90W 17.100lm (190lm/W) - 5700K - IP65 - Dimmable
This Saturn LED high bay features BridgeLux LED chips with an efficiency as high as 190 lumens per watt. As a result, this high bay consumes only 90 watts to produce 17,700 lumens of light. In addition to being economical, this high bay is also very durable. The LED high bay has no less than 50,000 burning hours. This means that with average use, this high bay lasts no less than 20 years. By connecting the LED high bay to a 1-10V LED dimmer, you can dim it continuously from 100-0%.
This ensures that you never use unnecessary power. The beam angle of 120 degrees ensures that this high bay is suitable for lighting large spaces and wide aisles. The Saturn is made of maintenance-free aluminum, IP65 waterproof and finished with a moisture-resistant and UV-resistant AKZO-Nobel powder coating. With a high 0.95 power factor, this hall light produces only 5 percent reactive current, allowing you to connect many high bays to one group.
The 120-degree beam angle makes the LED high bay suitable for lighting wide and narrow hallways.
• Saving 84 % (190 lm/W)
This LED high bay shines with an efficiency of 190 lumens per watt. This is an energy saving of up to 84 % in comparison to your current lighting.
• Daylight white light colour - 5700K
This bright light colour is often chosen for areas where people work all day. Examples include workshops, warehouses and depots. Can best be described as a bright working light colour.
• Continuously dimmable
These LED High Bays are infinitely dimmable from 5% to 100%. Illuminate workspaces properly and dim transport areas and corridors, so you only consume what is really needed.
• Dust- and splash-proof - IP65
This high IP rating means that the LED High Bay will not fail due to moisture and/or dust. This makes this luminaire suitable for the most humid and dusty environments.
• 0.95 Power factor
With a power factor of 0.95, this lamp supplies only 5% reactive current. As a result only 5% additional load is placed on the connected group. Ideal for projects and large installations.
• Optimal heat conduction
The enormous light output of this high bay means that the lamp heats up quickly. Fortunately, the unique cyclonic design ensures that this heat is quickly dissipated.
• 50.000 hours (approx. 20 years)
With a lifetime of 50,000 burning hours, this High Bay will last at least 20 years at 250 days a year and 10 hours a day. No worries about your LED for 20 years.
• Operating temperature -20 to 45 degrees
These LED High Bays operate under operating temperatures between -20° the +45°C, perfect for uninsulated spaces, cold rooms and hot warehouses.
Saturn LED High Bay - 90W 17.100lm (190lm/W) - 5700K - IP65 - Dimmable
This Saturn LED high bay features BridgeLux LED chips with an efficiency as high as 190 lumens per watt. As a result, this high bay consumes only 90 watts to produce 17,700 lumens of light. In addition to being economical, this high bay is also very durable. The LED high bay has no less than 50,000 burning hours. This means that with average use, this high bay lasts no less than 20 years. By connecting the LED high bay to a 1-10V LED dimmer, you can dim it continuously from 100-0%.
This ensures that you never use unnecessary power. The beam angle of 120 degrees ensures that this high bay is suitable for lighting large spaces and wide aisles. The Saturn is made of maintenance-free aluminum, IP65 waterproof and finished with a moisture-resistant and UV-resistant AKZO-Nobel powder coating. With a high 0.95 power factor, this hall light produces only 5 percent reactive current, allowing you to connect many high bays to one group.
The 120-degree beam angle makes the LED high bay suitable for lighting wide and narrow hallways.
• Saving 84 % (190 lm/W)
This LED high bay shines with an efficiency of 190 lumens per watt. This is an energy saving of up to 84 % in comparison to your current lighting.
• Daylight white light colour - 5700K
This bright light colour is often chosen for areas where people work all day. Examples include workshops, warehouses and depots. Can best be described as a bright working light colour.
• Continuously dimmable
These LED High Bays are infinitely dimmable from 5% to 100%. Illuminate workspaces properly and dim transport areas and corridors, so you only consume what is really needed.
• Dust- and splash-proof - IP65
This high IP rating means that the LED High Bay will not fail due to moisture and/or dust. This makes this luminaire suitable for the most humid and dusty environments.
• 0.95 Power factor
With a power factor of 0.95, this lamp supplies only 5% reactive current. As a result only 5% additional load is placed on the connected group. Ideal for projects and large installations.
• Optimal heat conduction
The enormous light output of this high bay means that the lamp heats up quickly. Fortunately, the unique cyclonic design ensures that this heat is quickly dissipated.
• 50.000 hours (approx. 20 years)
With a lifetime of 50,000 burning hours, this High Bay will last at least 20 years at 250 days a year and 10 hours a day. No worries about your LED for 20 years.
• Operating temperature -20 to 45 degrees
These LED High Bays operate under operating temperatures between -20° the +45°C, perfect for uninsulated spaces, cold rooms and hot warehouses.
Key specifications
All specifications
Key specifications
| IP rate | IP65 |
|---|---|
| Workingvoltage | 230 V |
| Output current | 360 mA |
| Operating-temperature | -40°C ~ +50°C |
| Total luminous flux | 17100 lm |
| Equivalent wattage | 1000 W |
| Light direction | Downlight |
| Wattage | 90 W |
Key specifications
| IP rate | IP65 |
|---|---|
| Workingvoltage | 230 V |
| Output current | 360 mA |
| Operating-temperature | -40°C ~ +50°C |
| Total luminous flux | 17100 lm |
| Equivalent wattage | 1000 W |
| Light direction | Downlight |
| Wattage | 90 W |
| Lens material | Polycarbonate (PC) |
| Powerfactor | >0.95 |
| Frequency | 50/60Hz |
| UGR | <22 |

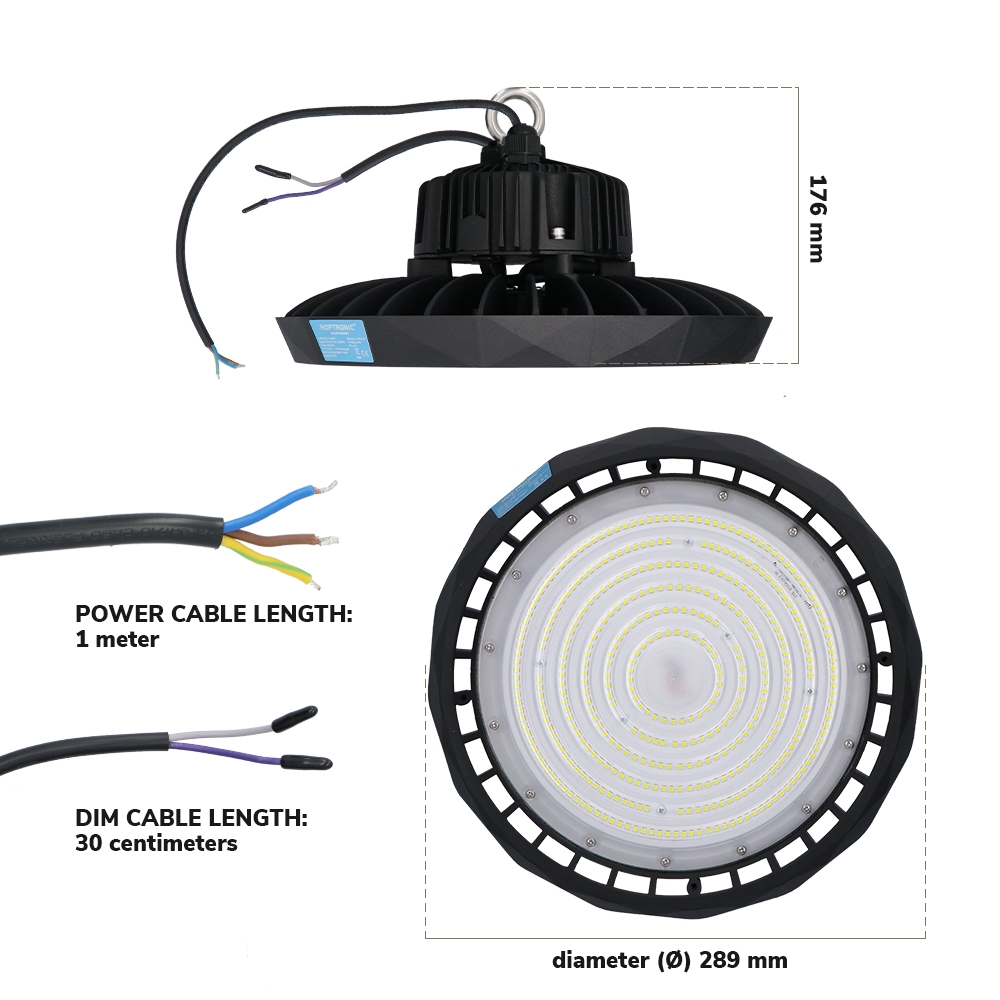

Dimensions & weights
| Weight | 2.3 |
|---|---|
| Width | 289 mm |
| Height | 176 mm |
| Length | 289 mm |
| Cable length | 100 cm |
Color and material
| Color | Black |
|---|---|
| Material | Aluminum |
| RAL Color | RAL 9017 |
| Diffuser material | Polycarbonate (PC) |
| Diffuser finishing | Transparent |
Other specifications
| IK-Value | IK10 |
|---|---|
| Inrush current | 102 A |
| Dimming technique | 1-10V |
| Inrush current duration | 1.2 μs |
Light source
| CRI | >70Ra |
|---|---|
| LB factor | L90B50 |
| Colour temperature | 5700K |
| Number of light points | 1 |
| Switching cycles | 100000 |
| Lumen per watt | 190 Lm/W |
| Energy label |  |
| Light color | Daylight white |
| Flickerfree | Yes |
| Light type | Direct |
| Beam angle | 120 ° |
| Lifespan | 50000 h |
| Dimmable | Yes |
| Amount LEDs | 420 |
General
| EAN | 8720365437526 |
|---|---|
| Brand | HOFTRONIC |
| Warranty | 5 year |
| Certifications | CE, RoHs, SAA |
| Warranty exemption | Not installed or used according to the manual |
Installation
| Ground wire | Yes |
|---|---|
| Placement type | Ceiling, Hanging |
| Connection voltage | 100-277V AC |
| Suitable for ceiling type | Concrete |
| Suitable for indoor outdoor | Indoor & outdoor |
| Suggested ceiling height | 4-6 Meter |
Packaging
| Packaging type | Box |
|---|---|
| Packaging width | 320 mm |
| Packaging height | 185 mm |
| Packaging length | 320 mm |
| Quantity in packaging | 1 |
| Quantity mastercarton | 1 |
| Packaging weight | 3200 g |
Key specifications
| IP rate | IP65 |
|---|---|
| Workingvoltage | 230 V |
| Output current | 360 mA |
| Operating-temperature | -40°C ~ +50°C |
| Total luminous flux | 17100 lm |
| Equivalent wattage | 1000 W |
| Light direction | Downlight |
| Wattage | 90 W |
Key specifications
| IP rate | IP65 |
|---|---|
| Workingvoltage | 230 V |
| Output current | 360 mA |
| Operating-temperature | -40°C ~ +50°C |
| Total luminous flux | 17100 lm |
| Equivalent wattage | 1000 W |
| Light direction | Downlight |
| Wattage | 90 W |
| Lens material | Polycarbonate (PC) |
| Powerfactor | >0.95 |
| Frequency | 50/60Hz |
| UGR | <22 |
Dimensions & weights
| Weight | 2.3 |
|---|---|
| Width | 289 mm |
| Height | 176 mm |
| Length | 289 mm |
| Cable length | 100 cm |
Color and material
| Color | Black |
|---|---|
| Material | Aluminum |
| RAL Color | RAL 9017 |
| Diffuser material | Polycarbonate (PC) |
| Diffuser finishing | Transparent |
Other specifications
| IK-Value | IK10 |
|---|---|
| Inrush current | 102 A |
| Dimming technique | 1-10V |
| Inrush current duration | 1.2 μs |
Light source
| CRI | >70Ra |
|---|---|
| LB factor | L90B50 |
| Colour temperature | 5700K |
| Number of light points | 1 |
| Switching cycles | 100000 |
| Lumen per watt | 190 Lm/W |
| Energy label | |
| Light color | Daylight white |
| Flickerfree | Yes |
| Light type | Direct |
| Beam angle | 120 ° |
| Lifespan | 50000 h |
| Dimmable | Yes |
| Amount LEDs | 420 |
General
| EAN | 8720365437526 |
|---|---|
| Brand | HOFTRONIC |
| Warranty | 5 year |
| Certifications | CE, RoHs, SAA |
| Warranty exemption | Not installed or used according to the manual |
Installation
| Ground wire | Yes |
|---|---|
| Placement type | Ceiling, Hanging |
| Connection voltage | 100-277V AC |
| Suitable for ceiling type | Concrete |
| Suitable for indoor outdoor | Indoor & outdoor |
| Suggested ceiling height | 4-6 Meter |
Packaging
| Packaging type | Box |
|---|---|
| Packaging width | 320 mm |
| Packaging height | 185 mm |
| Packaging length | 320 mm |
| Quantity in packaging | 1 |
| Quantity mastercarton | 1 |
| Packaging weight | 3200 g |
Downloads
Saturn LED High Bay - Dimmable - 90 Watts 17.100 lumens (190lm/W) - 5700K daylight white - 120° - IP65 waterproof - Energy label A - Bridgelux LEDs
Downloads
Saturn LED High Bay - Dimmable - 90 Watts 17.100 lumens (190lm/W) - 5700K daylight white - 120° - IP65 waterproof - Energy label A - Bridgelux LEDs
Review
Key specifications
| IP rate | IP65 |
|---|---|
| Workingvoltage | 230 V |
| Output current | 360 mA |
| Operating-temperature | -40°C ~ +50°C |
| Total luminous flux | 17100 lm |
| Equivalent wattage | 1000 W |
| Light direction | Downlight |
| Wattage | 90 W |
| Lens material | Polycarbonate (PC) |
| Powerfactor | >0.95 |
| Frequency | 50/60Hz |
| UGR | <22 |
Dimensions & weights
| Weight | 2.3 |
|---|---|
| Width | 289 mm |
| Height | 176 mm |
| Length | 289 mm |
| Cable length | 100 cm |
Color and material
| Color | Black |
|---|---|
| Material | Aluminum |
| RAL Color | RAL 9017 |
| Diffuser material | Polycarbonate (PC) |
| Diffuser finishing | Transparent |
Other specifications
| IK-Value | IK10 |
|---|---|
| Inrush current | 102 A |
| Dimming technique | 1-10V |
| Inrush current duration | 1.2 μs |
Light source
| CRI | >70Ra |
|---|---|
| LB factor | L90B50 |
| Colour temperature | 5700K |
| Number of light points | 1 |
| Switching cycles | 100000 |
| Lumen per watt | 190 Lm/W |
| Energy label | |
| Light color | Daylight white |
| Flickerfree | Yes |
| Light type | Direct |
| Beam angle | 120 ° |
| Lifespan | 50000 h |
| Dimmable | Yes |
| Amount LEDs | 420 |
General
| EAN | 8720365437526 |
|---|---|
| Brand | HOFTRONIC |
| Warranty | 5 year |
| Certifications | CE, RoHs, SAA |
| Warranty exemption | Not installed or used according to the manual |
Installation
| Ground wire | Yes |
|---|---|
| Placement type | Ceiling, Hanging |
| Connection voltage | 100-277V AC |
| Suitable for ceiling type | Concrete |
| Suitable for indoor outdoor | Indoor & outdoor |
| Suggested ceiling height | 4-6 Meter |
Packaging
| Packaging type | Box |
|---|---|
| Packaging width | 320 mm |
| Packaging height | 185 mm |
| Packaging length | 320 mm |
| Quantity in packaging | 1 |
| Quantity mastercarton | 1 |
| Packaging weight | 3200 g |
