25x Cable connector - T-shaped - IP68 waterproof
HOFTRONICSKU: H5435119
Product information
25x Cable connector - T-shaped - IP68 waterproof
Product information
25x Cable connector - T-shaped - IP68 waterproof
These waterproof cable connectors are perfect for connecting garden lighting and other electrical devices in the garden. The cable connector has a T-shape, allowing you to use the connectors to go around corners or create branches in cables. The cable connectors are IP68 waterproof. This makes your electrical installation highly resistant to moisture. The cable connectors are suitable for cables between 4 and 12 millimetres thick.
• IP68 waterproof
Fully protected from dust and water up to 4 meters deep. No breakdowns due to garden sprinkler, plant watering, cold, sleet, as well as tropical heat.
• Plug & play
Inside the cable connector is a crown block that allows you to connect multiple cables. You can remove the crown block to connect the cables easily.
• Suitable for installation
This version is suitable for a two or three wire cable (neutral, phase, earth). This ensures a safe connection for your garden lighting.
• 3-wire
The standard and extra caps in the cable connector are suitable for 2- and 3-wire cables. You can easily exchange them yourself for more flexibility.
• Suitable for
Waterproof T-shaped cable connector for three-core cables (neutral, phase, ground) from 8 to 12 mm thick, makes connecting light points easy.
• Black colour
The cable connector in black can be used above ground without being conspicuous. Ideal if you cannot install the cable connector in the ground.
• Seamless finish
Using the best quality rubber and plastic, this connector is the perfect solution when you want to connect cables for your garden and outdoor lighting.
• 2-year warranty
Don't worry about your cable connectors. We provide a 2-year warranty. Made with care, shipped and installed by you for worry-free use.
25x Cable connector - T-shaped - IP68 waterproof
These waterproof cable connectors are perfect for connecting garden lighting and other electrical devices in the garden. The cable connector has a T-shape, allowing you to use the connectors to go around corners or create branches in cables. The cable connectors are IP68 waterproof. This makes your electrical installation highly resistant to moisture. The cable connectors are suitable for cables between 4 and 12 millimetres thick.
• IP68 waterproof
Fully protected from dust and water up to 4 meters deep. No breakdowns due to garden sprinkler, plant watering, cold, sleet, as well as tropical heat.
• Plug & play
Inside the cable connector is a crown block that allows you to connect multiple cables. You can remove the crown block to connect the cables easily.
• Suitable for installation
This version is suitable for a two or three wire cable (neutral, phase, earth). This ensures a safe connection for your garden lighting.
• 3-wire
The standard and extra caps in the cable connector are suitable for 2- and 3-wire cables. You can easily exchange them yourself for more flexibility.
• Suitable for
Waterproof T-shaped cable connector for three-core cables (neutral, phase, ground) from 8 to 12 mm thick, makes connecting light points easy.
• Black colour
The cable connector in black can be used above ground without being conspicuous. Ideal if you cannot install the cable connector in the ground.
• Seamless finish
Using the best quality rubber and plastic, this connector is the perfect solution when you want to connect cables for your garden and outdoor lighting.
• 2-year warranty
Don't worry about your cable connectors. We provide a 2-year warranty. Made with care, shipped and installed by you for worry-free use.
Key specifications
All specifications
Key specifications
| IP rate | IP68 |
|---|---|
| Operating-temperature | -25°C ~ 100° C |
| Number of connection points | 3 |
| Max Cable Diameter | 12 mm |
| Min Cable Diameter | 4 mm |
| Total number of clamp positions | 3 |
| Core thickness | 0.5 - 2.5 mm² |
| Max Core thickness diameter | 2.5 mm |
Key specifications
| IP rate | IP68 |
|---|---|
| Operating-temperature | -25°C ~ 100° C |
| Number of connection points | 3 |
| Max Cable Diameter | 12 mm |
| Min Cable Diameter | 4 mm |
| Total number of clamp positions | 3 |
| Core thickness | 0.5 - 2.5 mm² |
| Max Core thickness diameter | 2.5 mm |
| Min Core thickness diameter | 0.5 mm |
Color and material
| Color | Black |
|---|---|
| Material | Plastic |
Packaging
| Packaging type | Bag |
|---|---|
| Quantity mastercarton | 500 |
General
| EAN | 8720365435119 |
|---|---|
| Brand | HOFTRONIC |
| Warranty | 2 year |
| Quantity | 25 |
| Certifications | CE, RoHs, TÜV |
| Warranty exemption | Not installed or used according to the manual |
Installation
| Ground wire | Yes |
|---|---|
| Connection voltage | 100-240V AC |
| Suitable for indoor outdoor | Indoor & outdoor |

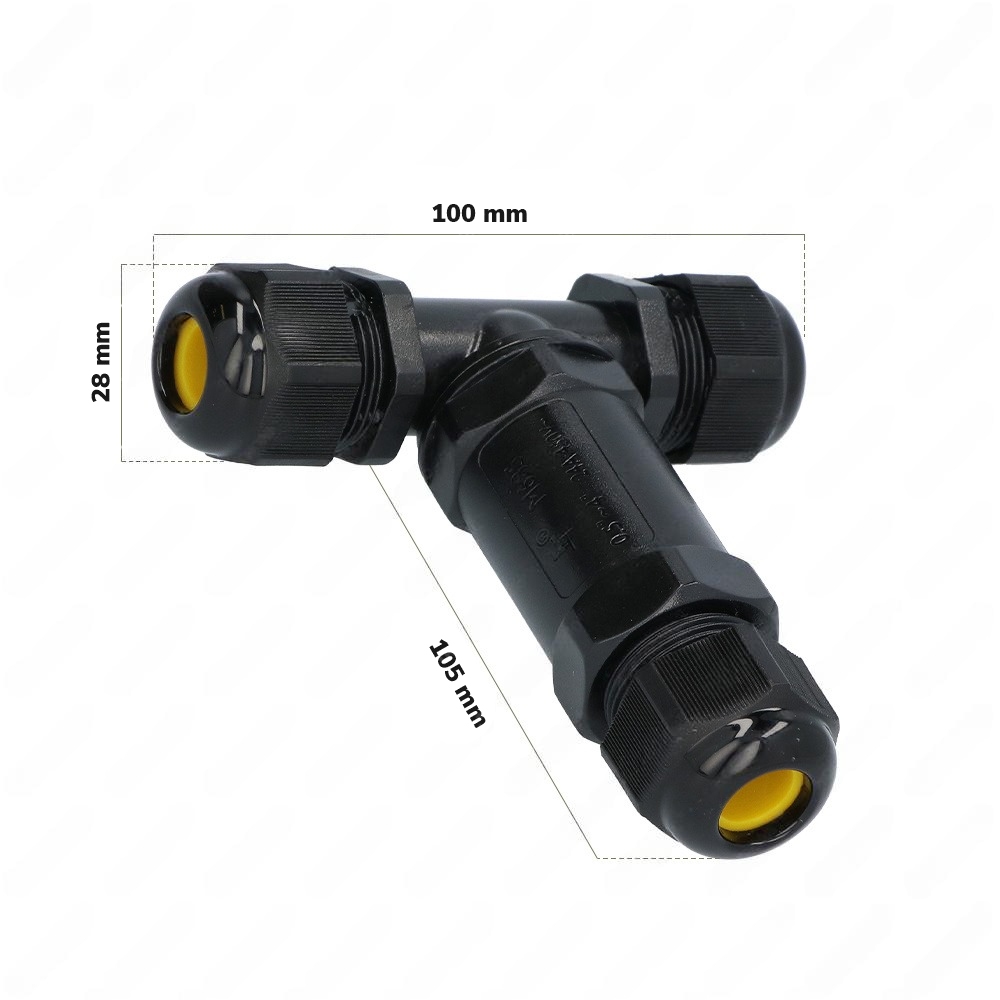

Dimensions & weights
| Width | 100 mm |
|---|---|
| Height | 28 mm |
| Length | 105 mm |
Key specifications
| IP rate | IP68 |
|---|---|
| Operating-temperature | -25°C ~ 100° C |
| Number of connection points | 3 |
| Max Cable Diameter | 12 mm |
| Min Cable Diameter | 4 mm |
| Total number of clamp positions | 3 |
| Core thickness | 0.5 - 2.5 mm² |
| Max Core thickness diameter | 2.5 mm |
Key specifications
| IP rate | IP68 |
|---|---|
| Operating-temperature | -25°C ~ 100° C |
| Number of connection points | 3 |
| Max Cable Diameter | 12 mm |
| Min Cable Diameter | 4 mm |
| Total number of clamp positions | 3 |
| Core thickness | 0.5 - 2.5 mm² |
| Max Core thickness diameter | 2.5 mm |
| Min Core thickness diameter | 0.5 mm |
Color and material
| Color | Black |
|---|---|
| Material | Plastic |
Packaging
| Packaging type | Bag |
|---|---|
| Quantity mastercarton | 500 |
General
| EAN | 8720365435119 |
|---|---|
| Brand | HOFTRONIC |
| Warranty | 2 year |
| Quantity | 25 |
| Certifications | CE, RoHs, TÜV |
| Warranty exemption | Not installed or used according to the manual |
Installation
| Ground wire | Yes |
|---|---|
| Connection voltage | 100-240V AC |
| Suitable for indoor outdoor | Indoor & outdoor |
Dimensions & weights
| Width | 100 mm |
|---|---|
| Height | 28 mm |
| Length | 105 mm |
Downloads
25x Cable connector - T-shaped - IP68 waterproof
Downloads
25x Cable connector - T-shaped - IP68 waterproof
Review
Key specifications
| IP rate | IP68 |
|---|---|
| Operating-temperature | -25°C ~ 100° C |
| Number of connection points | 3 |
| Max Cable Diameter | 12 mm |
| Min Cable Diameter | 4 mm |
| Total number of clamp positions | 3 |
| Core thickness | 0.5 - 2.5 mm² |
| Max Core thickness diameter | 2.5 mm |
| Min Core thickness diameter | 0.5 mm |
Color and material
| Color | Black |
|---|---|
| Material | Plastic |
Packaging
| Packaging type | Bag |
|---|---|
| Quantity mastercarton | 500 |
General
| EAN | 8720365435119 |
|---|---|
| Brand | HOFTRONIC |
| Warranty | 2 year |
| Quantity | 25 |
| Certifications | CE, RoHs, TÜV |
| Warranty exemption | Not installed or used according to the manual |
Installation
| Ground wire | Yes |
|---|---|
| Connection voltage | 100-240V AC |
| Suitable for indoor outdoor | Indoor & outdoor |
Dimensions & weights
| Width | 100 mm |
|---|---|
| Height | 28 mm |
| Length | 105 mm |
