Ecodim - LED dimmer - 0-150 W - Push-button / rotary - Phase cut - Built-in - ECO-DIM.04

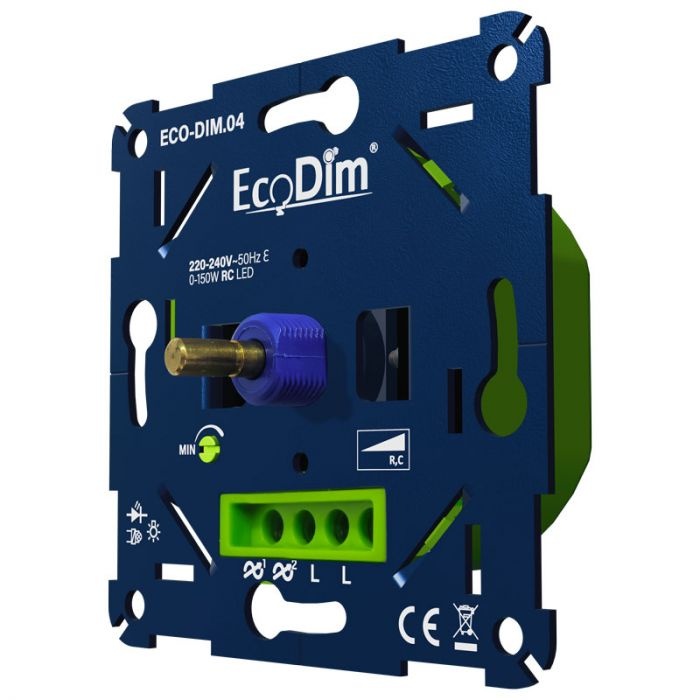

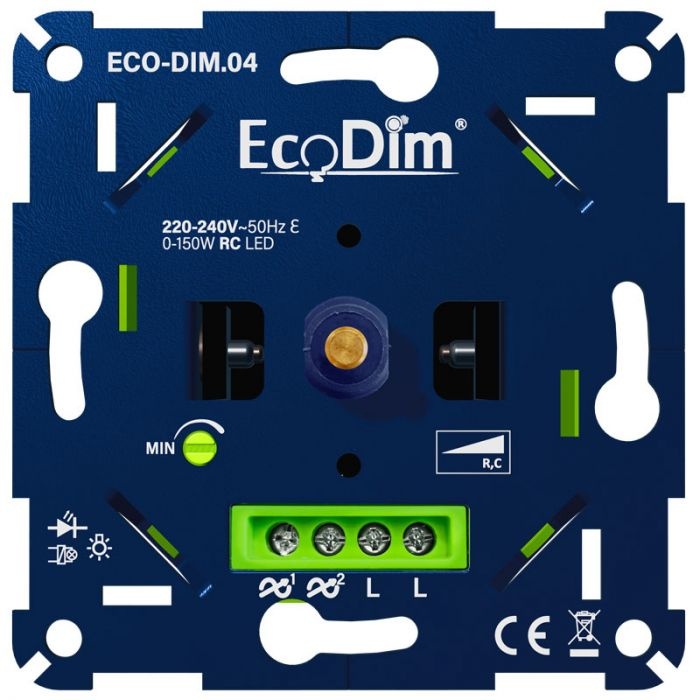

LED dimmer 0-150 Watt phase cut ECO-DIM.04

With this universal LED dimmer you make it possible in no time to easily dim your lights in your home. The dimmer can easily be built into any standard flush-mounting box and is compatible with practically all A-brand cover materials.

Always read the manual before installing the dimmer. Click on this manual link to download the manual.

Product Features

• Compatible with A-brand cover materials: The universal design makes the dimmer suitable for almost all A-brand cover materials.
• Small recessed depth: The dimmer is easy to build in with a recessed depth of only 23mm
• Soft-start system: The soft-start system ensures that the lamps can be switched on at the last used dimming setting
• Extra security: Thanks to the fuse that is built in as standard, you don't have to worry about possible short-circuits
• Optimal dimmability & light stability: Set the dimmer exactly as your situation dictates

Compatible with practically all cover materials

The LED dimmer comes standard with 3 fittings that make it possible to build in the dimmer behind practically all existing cover materials. For various brands, fittings should be added to make the dimmer fit, this is clearly described in the manual. This makes the dimmer suitable for:

• Berker by Hager
• Busch-Jaeger
• Gira
• JUNG
• Merten by Schneider
• PEHA

Push / rotary dimmer

Unique to this LED dimmer is the combination with a push button. Where previously all smart dimmers worked with a pulse switch, this LED dimmer works with the familiar dial. By pressing you can switch the LED lamps on / off and by turning you can dim.

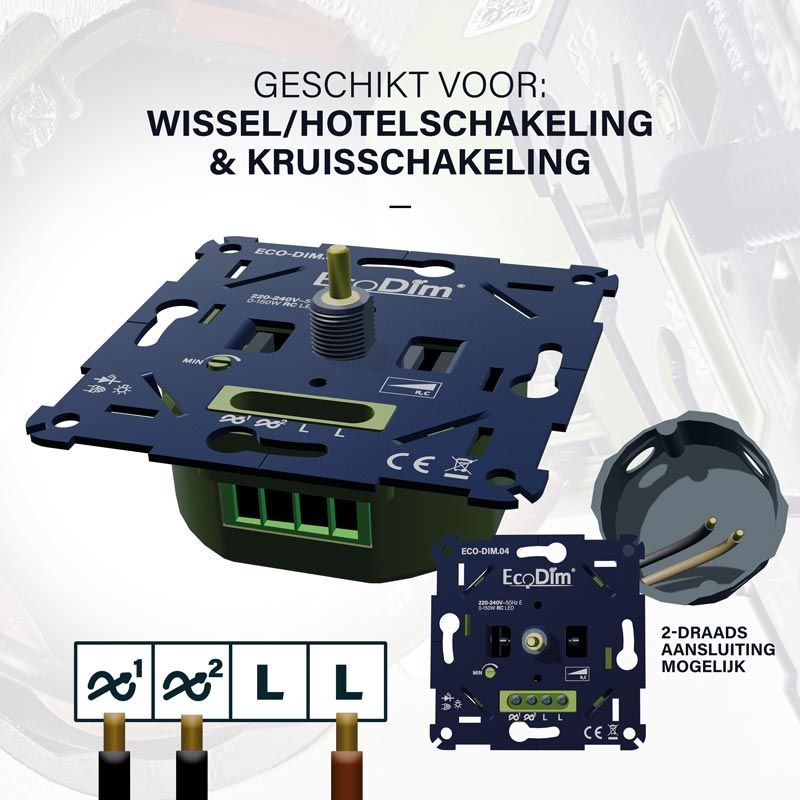

Suitable for switch/hotel switching

The rotary dimmer can be used in two-way / hotel switching with (at the other switching point) a normal wired push button.

Optimal dimmability & light stability

Adjusting the LED dimmer ensures that the LED lamps that are connected can be dimmed stably. With the user-friendly MIN potentiometer you control the minimum light and the stability in the lowest light position. How to set this is clearly explained in the included installation manual. It is very simple. In addition, the dimmer has an automatic MAX detection. With each new or modified installation, the dimmer automatically detects fluctuations in the maximum light level and automatically adjusts it, preventing flickering in the highest light setting.

Silent dimming

Thanks to the high quality of this electronic smart dimmer, all LED lamps can be dimmed silently. No buzzing dimmer or LED lamps!

Small build-in depth

The LED dimmer has a small built-in depth of only 23mm, this makes it possible to build the dimmer in many ways. The dimmer is suitable for any normal wall box with screw holes.

Suitable types of lamps

Led lamps 230V* (max. 150W)

• Incandescent lamps (max. 400W)
• Halogen lamps 230V (max. 400W)
• Low voltage lamps with magnetic transformer (max. 400W)

*Since the lamps operate on a phase cut LED dimmer.
