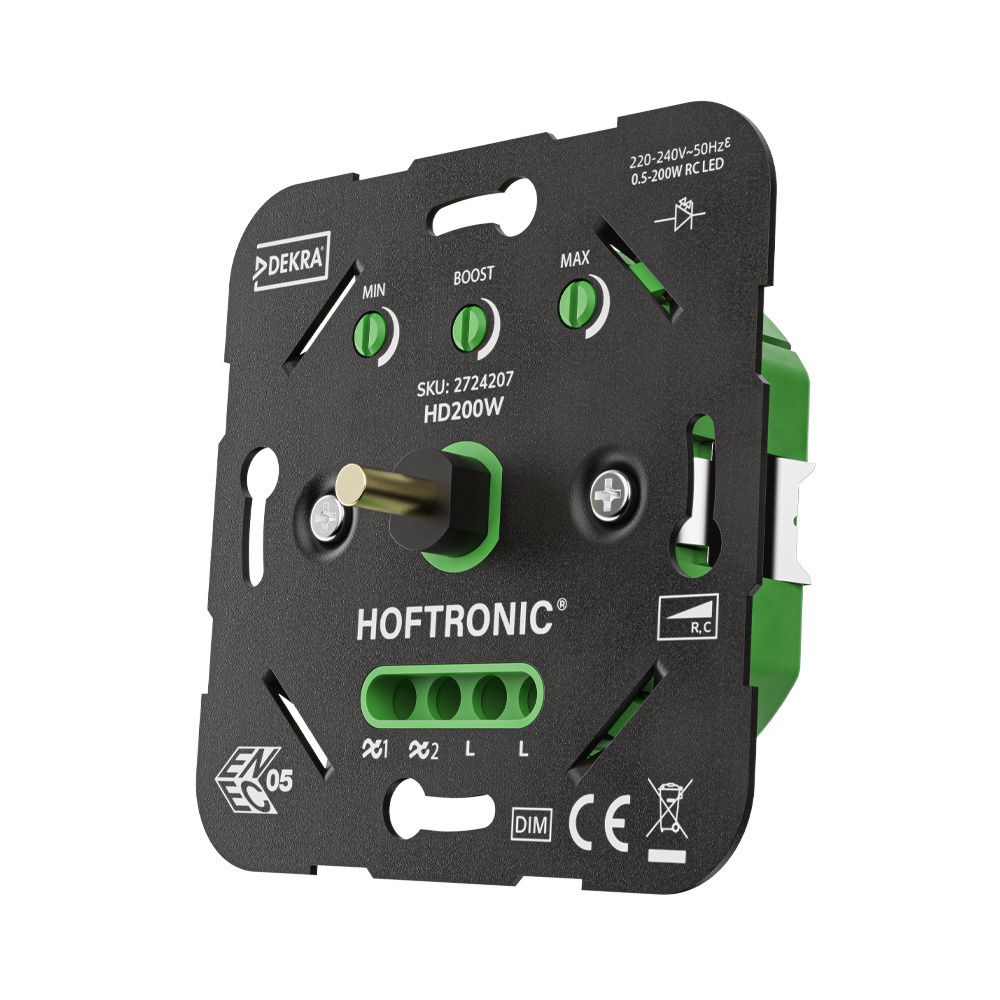

HOFTRONIC™ - Rotary LED dimmer HD200W - 0.5-200 watts - Suitable for trailing edge - 2-wire dimmer - Built-in dimmer - Universal

Rotary LED 200W universal dimmer - Silent dimming

Want to dim your LED lighting perfectly without any buzzing or flickering? Then this LED 200W dimmer is exactly what you need. An LED dimmer gives you control over the brightness of your lighting. This allows you to create exactly the right atmosphere: bright light for working, or soft, warm light for a relaxing evening. This built-in LED dimmer is designed to ensure smooth, silent and reliable dimming.

Thanks to its smart settings, wide compatibility and built-in safety features, this dimmer for LED lighting is a must-have for anyone who wants to get the most out of their lighting – whether you're dimming a single lamp in the living room or multiple spotlights in the kitchen.

Product features

• Universally applicable: Suitable for all dimmable LED lighting from 0.5 to 200 watts.
• Full control over light level: Thanks to the three setting points (MIN, MAX and BOOST), you can perfectly adjust the LED dimmer to your lighting.
• Silent dimming: No buzzing noise thanks to high-quality electronic components.
• Hotel circuit/changeover circuit: This dimmer is designed for use in a changeover circuit, where one dimmer and one traditional changeover switch are used together. This allows you to control the same group of lights from two locations: dimming at one point and switching on/off at the other.
• Protected against overload: Automatic protection against thermal and electrical overload.

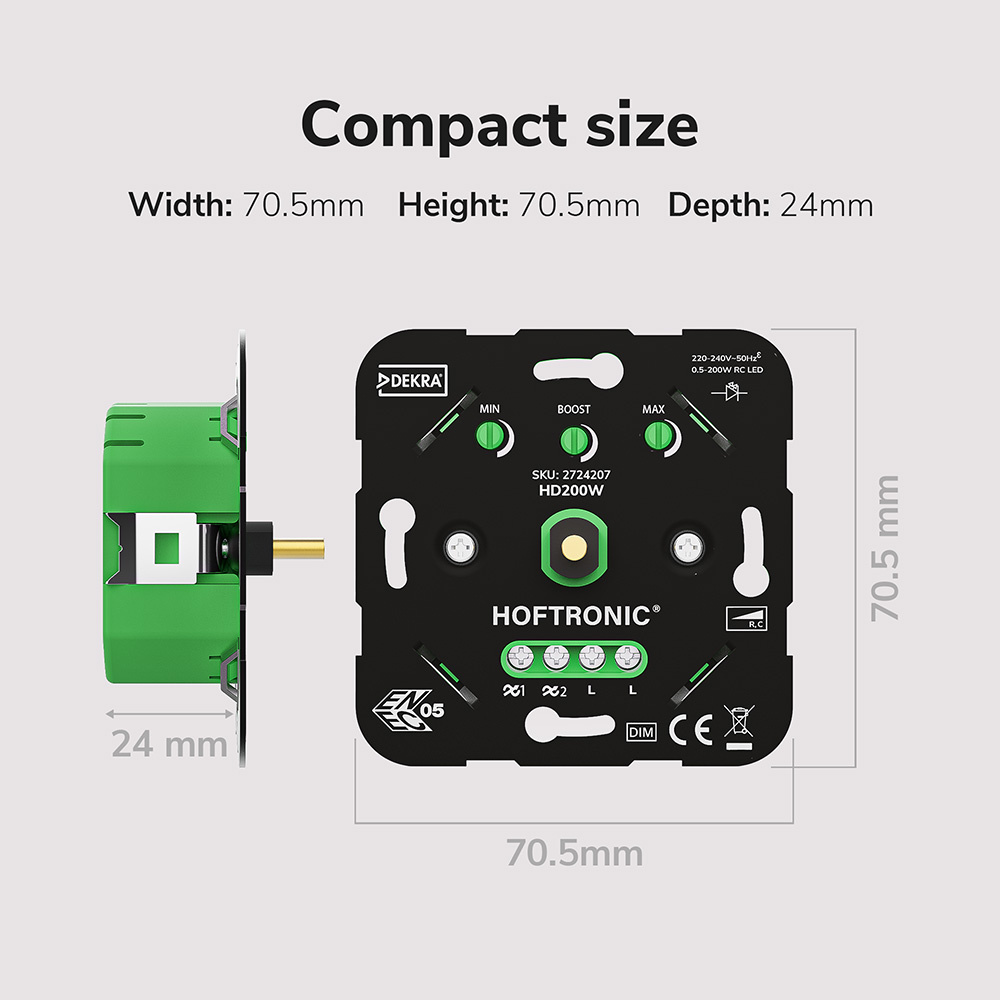

• Compact size: Fits in standard flush-mounted boxes (DIN 49073, 73 x 73 x 24 mm).

Setting the LED dimmer with MIN, MAX & BOOST

This built-in dimmer is equipped with three handy adjustment screws that allow you to fine-tune the lighting to your situation. These settings are located on the front of the dimmer and can be easily adjusted with a small screwdriver:

• MIN: This sets the minimum light level. This is useful if you notice that your lights start to flicker or become unstable at the lowest setting. By setting the MIN slightly higher, you can prevent this problem and ensure that the light always remains constant.
• MAX: This determines the maximum brightness of the light. This is ideal if, for example, you never need full light or if you want to prevent the lighting from becoming too bright in smaller spaces.
• BOOST: This function helps prevent the so-called ‘popcorn effect’. This is the phenomenon where the lights first flash brightly when switched on and only then dim to the desired level. By adjusting the BOOST correctly, you switch the lighting directly to the correct setting – without unwanted flashes of light.

Thanks to these three settings, you can fully tailor the LED dimmer to the type of lighting you use, from LED filament to recessed downlights. Setting it up takes just a few minutes, but ensures that your lighting always does exactly what you want.

Dimming principle: trailing edge

This LED dimmer works according to the phase cut dimming principle, also known as trailing edge. This means that the dimmer cleverly ‘cuts’ the current signal to control the light intensity of your lamps. The big advantage of this type of dimming is that it works silently and ensures a stable light output without flickering, ideal for modern LED lighting.

Thanks to the (R, C) dimming type, the dimmer is suitable for both resistive and capacitive loads, making it widely applicable for almost all dimmable LED lamps, spotlights and filament lamps.

LED dimmer that fits in any standard flush-mount box

This LED flush-mount dimmer has a universal flush-mount size that fits seamlessly into DIN 49073-compliant flush-mount boxes. This makes it possible to install the dimmer for LED lighting in almost any standard electrical box, whether you are renovating or building new. Thanks to its compact size, there is enough space for wiring without it becoming cramped in the flush-mounting box.

Compatible with popular cover frames

You don't have to worry about whether your existing cover frame will fit. This flush-mounted dimmer is suitable for almost all well-known brands, including:

• Berker by Hager
• Busch-Jaeger
• Gira
• JUNG
• Kopp
• Merten by Schneider 51xx and System M
• Niko xxx-31003 (with Niko adapter) and xxx-31000
• PEHA
• Dimmer knob with D-shaped hole, such as Wintop, Plieger, GAMMA Everest * (only when using adapter with D-shape)

Thanks to its smart design and the included mounting materials, the dimmer for LED lighting always fits neatly. Includes additional mounting materials for the following brands:

• JUNG: Washer, nuts and screws
• Busch-Jaeger: Ashuls and metal ring

Suitable for almost all dimmable lamps

Whether you work with modern LED filament lamps, classic dimmable LED spotlights or a mix of lighting types, this universal dimmer can handle it. Thanks to its range of 0.5 to 200 watts, the LED dimmer works flawlessly with:

• Dimmable LED lamps
• LED filament lamps
• Spotlights (recessed, surface-mounted)
• Other dimmable luminaires

The trailing edge dimming technology ensures that even sensitive lamps are dimmed smoothly and quietly, without flickering or interference.

Easy installation – 2-wire connection

Installing this LED dimmer is quick and easy. All you need is a 2-wire connection – the standard wiring found in most homes. No neutral wire is required, which makes retrofitting easier.

Please note: Always switch off the power at the fuse box before installing the dimmer.

Always consult the manual

The dimmer comes with a clear, multilingual manual that explains step by step how to connect and adjust the dimmer. It also tells you which settings you can use for each type of lamp, how to activate the boost function and which accessories may be required for your brand of cover frame.

Safety & quality marks

The dimmer is equipped with automatic protection against overload and overheating. In addition, the product complies with the following European standards and guidelines: IEC60669-2-1, EN55015, EN61547, EN61000-3-2 and EN61000-3-3.

The dimmer has the DEKRA safety mark and the ENEC05 mark, which guarantees that the product complies with strict European safety requirements and has been independently tested for quality and reliability.

With this LED 200W dimmer, you are choosing comfort, control and quality in one compact product. Perfect for any DIY enthusiast or professional looking for a quiet, universal solution for dimming LED lighting.

Contents:

1x Rotary LED dimmer
4x Rotary knob with D-shaped hole in 4 and 6 mm
1x Rotatable adapter for JUNG
2x Mounting screws (for JUNG or NIKO)
1x Nut for securing central cover plates (without ring)
1x Nut for securing central cover plates (with ring)
1x Ring for Busch-Jaeger and NIKO
