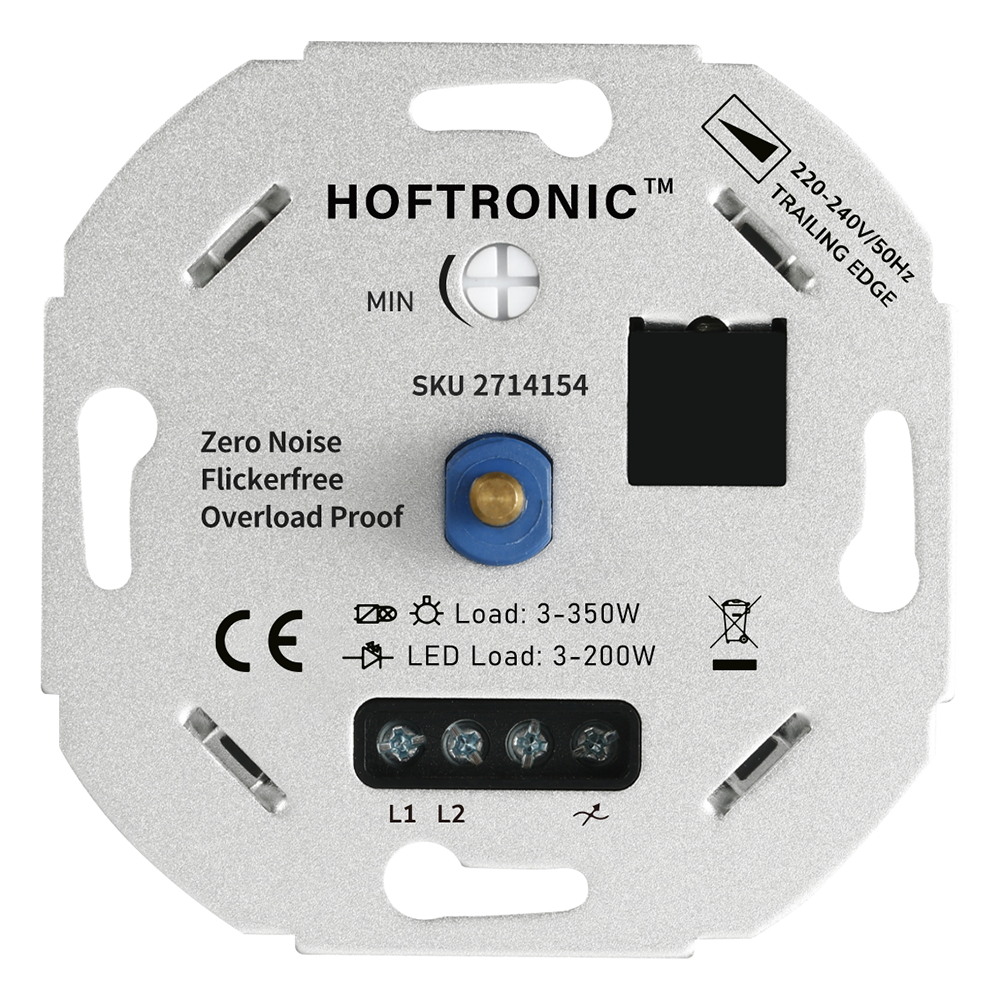

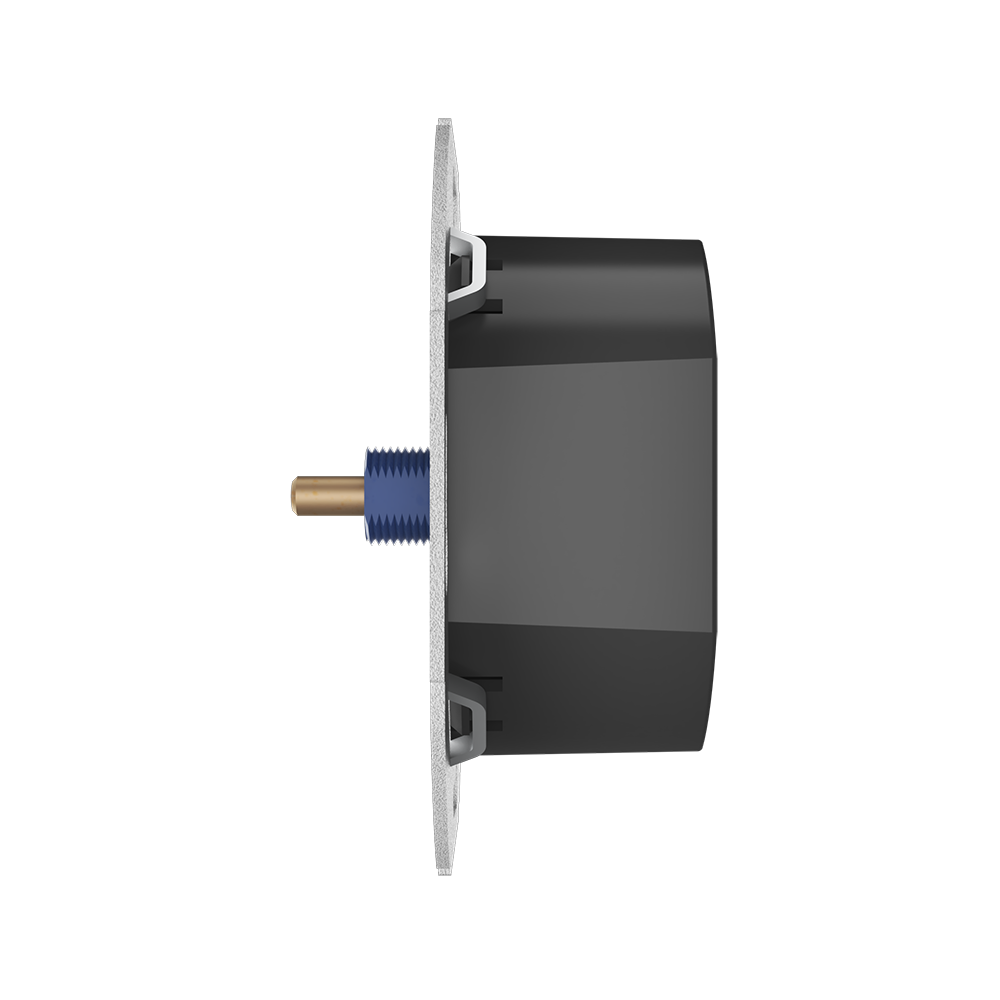

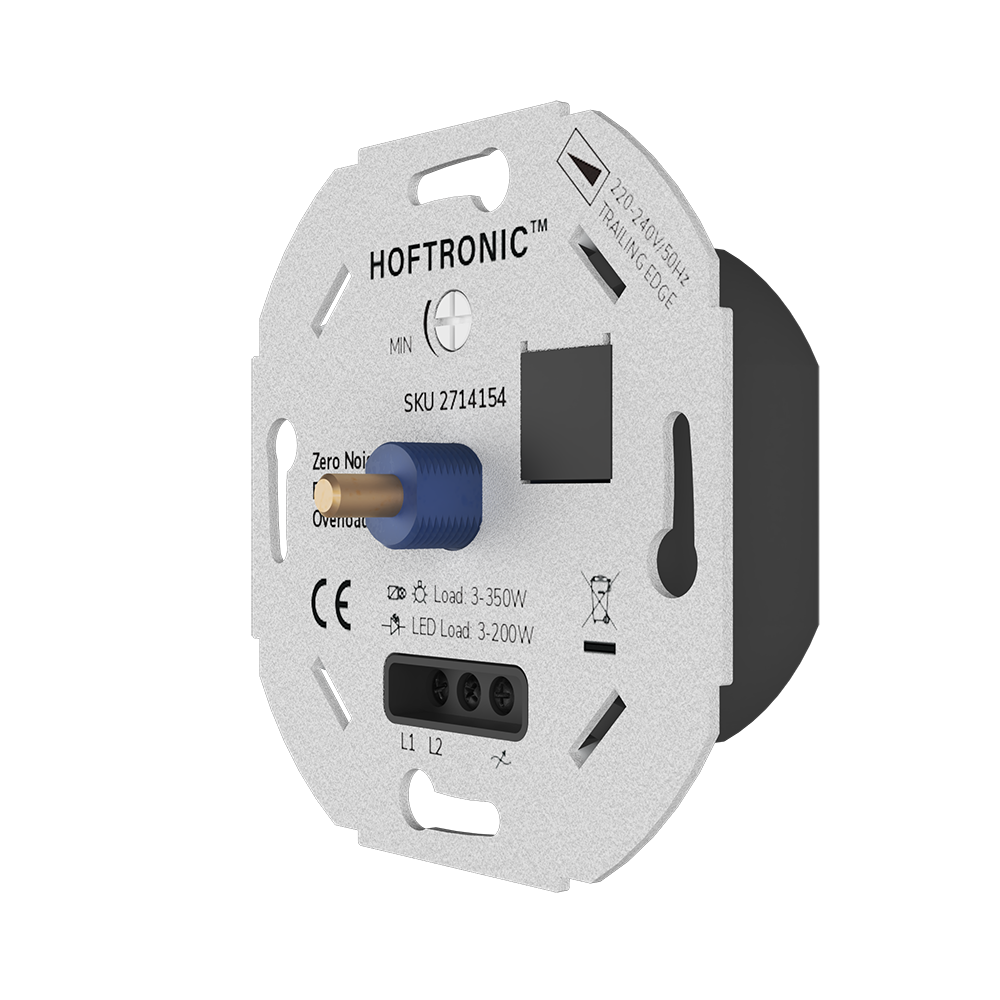

LED dimmer - 3-200 Watts - Suitable for trailing edge - Universal
HOFTRONICSKU: 2714154
Product information
LED dimmer - 3-200 Watts - Suitable for trailing edge - Universal
Product information
LED dimmer - 3-200 watt - Suitable for trailing edge - Universal
On this LED dimmer you can easily connect any LED lighting between 3 and 200 watts. Thanks to the handy MIN setting, you can easily set how far you want the connected lamps to be dimmed. With the LED dimmer you receive a handy adapter set. Through this set, all cover materials of the major brands fit on this LED dimmer. Think of GIRA, JUNG and Busch Jeager. The dimmer dims connected lamps steplessly and completely silent.
• Dimmable from 200 to 3 W
With this LED dimmer, you can connect lamps up to 200 Watt power. When the LED lights are connected, you can dim them to a minimum power of 3 Watt.
• Universal LED dimmer
You can combine this LED dimmer with the cover materials of all major brands. Think of cover materials from: Gira, Berker, Peha, Jung and Busch Jeager.
• Leading Edge technology
This LED dimmer is compatible only with leading edge dimmable lamps. Leading edge dimming is the oldest and most widely used dimming technology.
• Dimmable
Because you can fully infinitely dim this spotlight from 100-0%, you will always have enough light to highlight a plant, statue or tree.
• Universally installable
You can install this LED dimmer in all standard flush-mounting boxes. This makes installation easy and super-fast. You no longer need to search for suitable switching material.
• LED_Dimmers_Smooth_dimming
Connected lights can be dimmed completely silently and without flickering with this LED dimmer. Stepless from 100-1%. Always exactly the right amount of lighting.
LED dimmer - 3-200 watt - Suitable for trailing edge - Universal
On this LED dimmer you can easily connect any LED lighting between 3 and 200 watts. Thanks to the handy MIN setting, you can easily set how far you want the connected lamps to be dimmed. With the LED dimmer you receive a handy adapter set. Through this set, all cover materials of the major brands fit on this LED dimmer. Think of GIRA, JUNG and Busch Jeager. The dimmer dims connected lamps steplessly and completely silent.
• Dimmable from 200 to 3 W
With this LED dimmer, you can connect lamps up to 200 Watt power. When the LED lights are connected, you can dim them to a minimum power of 3 Watt.
• Universal LED dimmer
You can combine this LED dimmer with the cover materials of all major brands. Think of cover materials from: Gira, Berker, Peha, Jung and Busch Jeager.
• Leading Edge technology
This LED dimmer is compatible only with leading edge dimmable lamps. Leading edge dimming is the oldest and most widely used dimming technology.
• Dimmable
Because you can fully infinitely dim this spotlight from 100-0%, you will always have enough light to highlight a plant, statue or tree.
• Universally installable
You can install this LED dimmer in all standard flush-mounting boxes. This makes installation easy and super-fast. You no longer need to search for suitable switching material.
• LED_Dimmers_Smooth_dimming
Connected lights can be dimmed completely silently and without flickering with this LED dimmer. Stepless from 100-1%. Always exactly the right amount of lighting.
Key specifications
All specifications
Key specifications
| IP rate | IP20 |
|---|---|
| Frequency | 50/60Hz |
| Operating-temperature | -10°C ~ +45°C |
| Max wattage | 200 W |
| Dimmer suitable for type lighting | LED, Halogen, Incandescent lamp |
| Dimmer type | Recessed |
| Min wattage | 3 W |
Key specifications
| IP rate | IP20 |
|---|---|
| Frequency | 50/60Hz |
| Operating-temperature | -10°C ~ +45°C |
| Max wattage | 200 W |
| Dimmer suitable for type lighting | LED, Halogen, Incandescent lamp |
| Dimmer type | Recessed |
| Min wattage | 3 W |
Color and material
| Color | Grey |
|---|---|
| Material | Aluminum & Plastic |
Other specifications
| Dimming technique | Trailing Edge |
|---|---|
| IK-Value | IK02 |

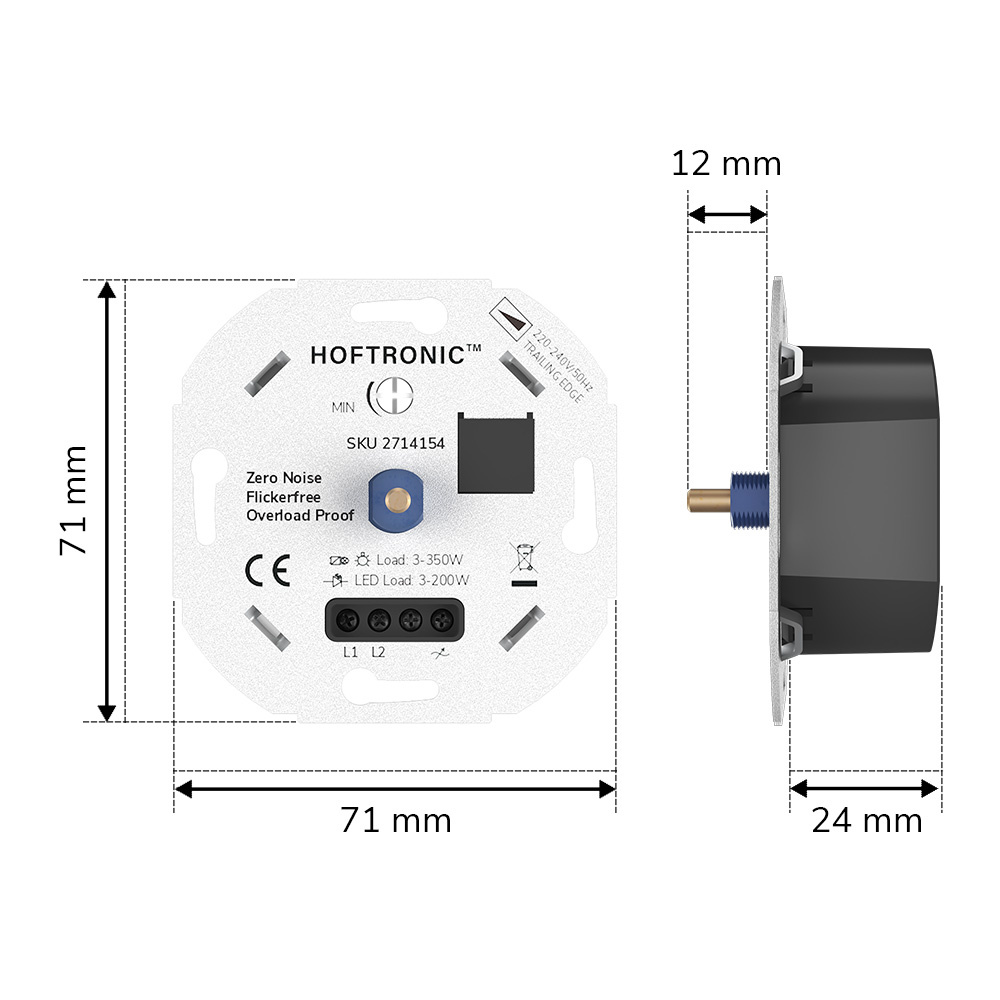

Dimensions & weights
| Width | 70 mm |
|---|---|
| Height | 71 mm |
| Length | 71 mm |
| Built-in depth | 24 mm |
| Built-in width | 71 mm |
| Built-in length | 71 mm |
General
| EAN | 8720722714154 |
|---|---|
| Brand | HOFTRONIC |
| Warranty | 2 year |
| Certifications | CE, RoHs |
| Warranty exemption | Not installed or used according to the manual |
Installation
| Connection voltage | 230-240V AC |
|---|---|
| Suitable for indoor outdoor | Indoor |
| Mounting | Built-in |
| Dimmer including adapter | Yes |
| Including coverplate | No |
Packaging
| Packaging type | Box |
|---|---|
| Packaging width | 71 mm |
| Packaging height | 48 mm |
| Packaging length | 71 mm |
| Quantity in packaging | 1 |
| Quantity mastercarton | 100 |
Key specifications
| IP rate | IP20 |
|---|---|
| Frequency | 50/60Hz |
| Operating-temperature | -10°C ~ +45°C |
| Max wattage | 200 W |
| Dimmer suitable for type lighting | LED, Halogen, Incandescent lamp |
| Dimmer type | Recessed |
| Min wattage | 3 W |
Key specifications
| IP rate | IP20 |
|---|---|
| Frequency | 50/60Hz |
| Operating-temperature | -10°C ~ +45°C |
| Max wattage | 200 W |
| Dimmer suitable for type lighting | LED, Halogen, Incandescent lamp |
| Dimmer type | Recessed |
| Min wattage | 3 W |
Color and material
| Color | Grey |
|---|---|
| Material | Aluminum & Plastic |
Other specifications
| Dimming technique | Trailing Edge |
|---|---|
| IK-Value | IK02 |
Dimensions & weights
| Width | 70 mm |
|---|---|
| Height | 71 mm |
| Length | 71 mm |
| Built-in depth | 24 mm |
| Built-in width | 71 mm |
| Built-in length | 71 mm |
General
| EAN | 8720722714154 |
|---|---|
| Brand | HOFTRONIC |
| Warranty | 2 year |
| Certifications | CE, RoHs |
| Warranty exemption | Not installed or used according to the manual |
Installation
| Connection voltage | 230-240V AC |
|---|---|
| Suitable for indoor outdoor | Indoor |
| Mounting | Built-in |
| Dimmer including adapter | Yes |
| Including coverplate | No |
Packaging
| Packaging type | Box |
|---|---|
| Packaging width | 71 mm |
| Packaging height | 48 mm |
| Packaging length | 71 mm |
| Quantity in packaging | 1 |
| Quantity mastercarton | 100 |
LED dimmer - 3-200 Watts - Suitable for trailing edge - Universal
Review
Key specifications
| IP rate | IP20 |
|---|---|
| Frequency | 50/60Hz |
| Operating-temperature | -10°C ~ +45°C |
| Max wattage | 200 W |
| Dimmer suitable for type lighting | LED, Halogen, Incandescent lamp |
| Dimmer type | Recessed |
| Min wattage | 3 W |
Color and material
| Color | Grey |
|---|---|
| Material | Aluminum & Plastic |
Other specifications
| Dimming technique | Trailing Edge |
|---|---|
| IK-Value | IK02 |
Dimensions & weights
| Width | 70 mm |
|---|---|
| Height | 71 mm |
| Length | 71 mm |
| Built-in depth | 24 mm |
| Built-in width | 71 mm |
| Built-in length | 71 mm |
General
| EAN | 8720722714154 |
|---|---|
| Brand | HOFTRONIC |
| Warranty | 2 year |
| Certifications | CE, RoHs |
| Warranty exemption | Not installed or used according to the manual |
Installation
| Connection voltage | 230-240V AC |
|---|---|
| Suitable for indoor outdoor | Indoor |
| Mounting | Built-in |
| Dimmer including adapter | Yes |
| Including coverplate | No |
Packaging
| Packaging type | Box |
|---|---|
| Packaging width | 71 mm |
| Packaging height | 48 mm |
| Packaging length | 71 mm |
| Quantity in packaging | 1 |
| Quantity mastercarton | 100 |
