Navarra Mini LED Surface mounted spotlight - 12 Volt 3 Watt 200 lumen - Dimmable - Ultra Thin 21.5mm - 2700K Warm White - IP44 waterproof - Aluminium - Porch Light
HOFTRONICSKU: 5422256
Product information
Navarra Mini LED Surface mounted spotlight - 12 Volt 3 Watt 200 lumen - Dimmable - Ultra Thin 21.5mm - 2700K Warm White - IP44 waterproof - Aluminium - Porch Light
Product information
Navarra Mini LED Spotlight 12V - 3W 200lm - Dimmable - 2700K - IP44 - Aluminium
This 12V mini LED surface-mounted spot is the perfect spot for wooden porches and canopies, in fact you can incorporate it into them or as a surface-mounted spot. With the extra warm light color of 2700K, this spot creates atmosphere and coziness. The spotlight is made of high-quality aluminum, comes with 5 meters of cable, and features a gray color. The IP value of IP44 allows you to use this spot both indoors and outdoors. This recessed downlight works on 12 Volts which means that it cannot be directly connected to 230V mains, a transformer is required. We have several matching transformers that you can order with this spotlight.

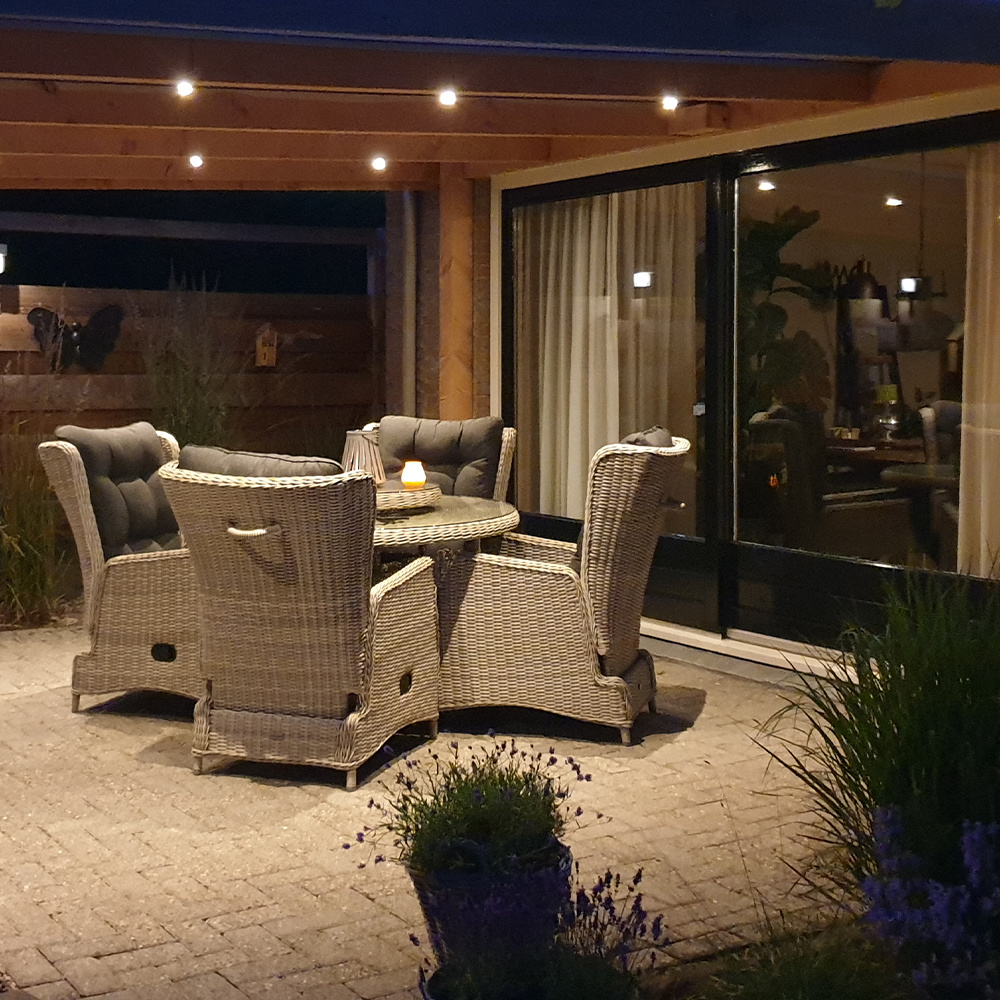

• Ideal for wooden verandas
These porch spotlights are specially made for wooden beams. You build the porch spotlights completely into the wooden beam. They can also be used as surface-mounted spotlights.
• Mini recessed spotlight with 33 mm built-in diameter
This porch recessed downlight has a cutting size of only 33 mm in diameter. This allows the recessed downlights to fit effortlessly into any porch, canopy or ceiling.
• Integrated light source
These porch lights have a built-in light source, so they have a very small builtin size. As a result, they fit virtually any veranda or ceiling.
• Warm white light colour - 2700K
Our customers describe this light colour as being a cosy and warm light colour for relaxing in. Perfect for the patio, garden shed or bathroom.

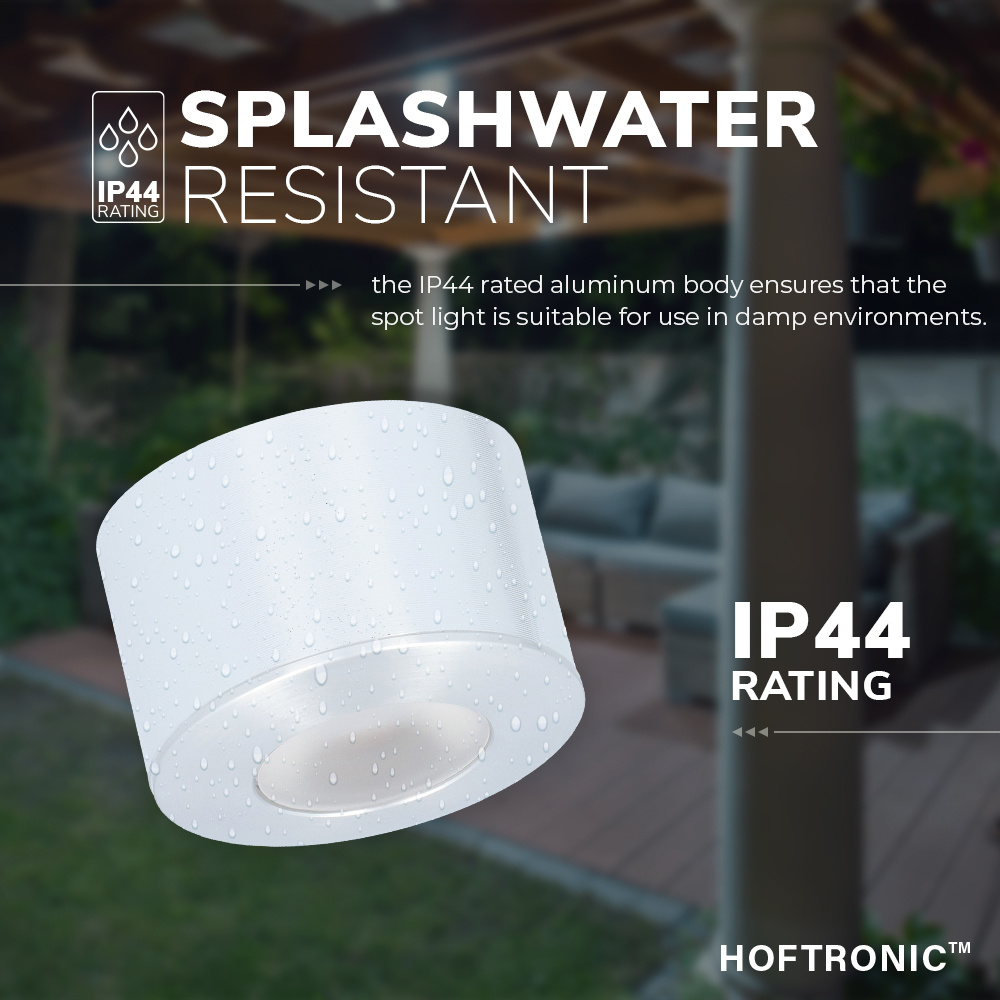

• Dust and splash water proof - IP44
This IP rating ensures that the porch downlights are unaffected by moisture and/or dust. So feel free to install these spotlights in a canopy, garden shed, veranda or bathroom.
• Recessed depth of 21.5 mm
Thanks to its low built-in depth of 21.5 mm, this recessed downlight fits easily into the smallest spaces. You therefore easily install it in any porch and suspended ceiling.
• Operates on 12V
These recessed spotlights operate on 12V. This means there is no risk of electric shock when installing the spotlights. Of course, you connect the driver directly to 230V.
• Low voltage operation via transformer
With this spotlight, you need a transformer to convert mains power from 220/230V to 12V. Make sure the transformer fits through the drilled hole of your spotlight.
Navarra Mini LED Spotlight 12V - 3W 200lm - Dimmable - 2700K - IP44 - Aluminium
This 12V mini LED surface-mounted spot is the perfect spot for wooden porches and canopies, in fact you can incorporate it into them or as a surface-mounted spot. With the extra warm light color of 2700K, this spot creates atmosphere and coziness. The spotlight is made of high-quality aluminum, comes with 5 meters of cable, and features a gray color. The IP value of IP44 allows you to use this spot both indoors and outdoors. This recessed downlight works on 12 Volts which means that it cannot be directly connected to 230V mains, a transformer is required. We have several matching transformers that you can order with this spotlight.
• Ideal for wooden verandas
These porch spotlights are specially made for wooden beams. You build the porch spotlights completely into the wooden beam. They can also be used as surface-mounted spotlights.
• Mini recessed spotlight with 33 mm built-in diameter
This porch recessed downlight has a cutting size of only 33 mm in diameter. This allows the recessed downlights to fit effortlessly into any porch, canopy or ceiling.
• Integrated light source
These porch lights have a built-in light source, so they have a very small builtin size. As a result, they fit virtually any veranda or ceiling.
• Warm white light colour - 2700K
Our customers describe this light colour as being a cosy and warm light colour for relaxing in. Perfect for the patio, garden shed or bathroom.
• Dust and splash water proof - IP44
This IP rating ensures that the porch downlights are unaffected by moisture and/or dust. So feel free to install these spotlights in a canopy, garden shed, veranda or bathroom.
• Recessed depth of 21.5 mm
Thanks to its low built-in depth of 21.5 mm, this recessed downlight fits easily into the smallest spaces. You therefore easily install it in any porch and suspended ceiling.
• Operates on 12V
These recessed spotlights operate on 12V. This means there is no risk of electric shock when installing the spotlights. Of course, you connect the driver directly to 230V.
• Low voltage operation via transformer
With this spotlight, you need a transformer to convert mains power from 220/230V to 12V. Make sure the transformer fits through the drilled hole of your spotlight.
Key specifications
All specifications
Key specifications
| IP rate | IP44 |
|---|---|
| Workingvoltage | 12 V |
| Output voltage | 12V DC |
| Output current | 3 A |
| Operating-temperature | -20°C ~ +50°C |
| Total luminous flux | 200 lm |
| Equivalent wattage | 25 W |
| Wattage | 3 W |
Key specifications
| IP rate | IP44 |
|---|---|
| Workingvoltage | 12 V |
| Output voltage | 12V DC |
| Output current | 3 A |
| Operating-temperature | -20°C ~ +50°C |
| Total luminous flux | 200 lm |
| Equivalent wattage | 25 W |
| Wattage | 3 W |
| Powerfactor | >0.90 |
| Frequency | 50/60Hz |
| Saw size | 33 mm |
| Can be driven over | No |
Dimensions & weights
| Built-in depth | 21.5 mm |
|---|---|
| Diameter spot | 33 mm |
| Length | 33 mm |
| Height | 21.5 mm |
| Width | 33 mm |
| Cable length | 5 m |
General
| EAN | 8720365422256 |
|---|---|
| Brand | HOFTRONIC |
| Warranty | 2 year |
| Quantity | 1 |
| Certifications | CE, RoHs |
| Warranty exemption | Not installed or used according to the manual |
Other specifications
| Dimming technique | Trailing Edge |
|---|
Light source
| CRI | >80Ra |
|---|---|
| Including light source | Yes |
| Wattage per lightsource | 3 W |
| Lightsource replaceable | No |
| Number of light points | 1 |
| Lumen per lightpoint | 200 lm |
| Switching cycles | 20000 |
| Lumen per watt | 70 Lm/W |
| Energy label |  |
| Light color | Extra warm white |
| Flickerfree | Yes |
| Light type | Direct |
| Beam angle | 45 ° |
| Tiltable | No |
| Lifespan | 25000 h |
| Dimmable | Yes |
Installation
| Ground wire | No |
|---|---|
| Connection voltage | 12V DC |
| Suitable for ceiling type | Suspended, Aluminum porch, Wood porch, System ceiling |
| Suitable for indoor outdoor | Indoor & outdoor |
| Mounting | Built-in, Surface mounted |
| Cable with plug | No |
| Including cable | Yes |
Color and material
| Color | Stainless steel |
|---|---|
| Material | Aluminum |
Packaging
| Packaging type | Bag |
|---|---|
| Quantity mastercarton | 120 |
| Packaging weight | 10 g |
Key specifications
| IP rate | IP44 |
|---|---|
| Workingvoltage | 12 V |
| Output voltage | 12V DC |
| Output current | 3 A |
| Operating-temperature | -20°C ~ +50°C |
| Total luminous flux | 200 lm |
| Equivalent wattage | 25 W |
| Wattage | 3 W |
Key specifications
| IP rate | IP44 |
|---|---|
| Workingvoltage | 12 V |
| Output voltage | 12V DC |
| Output current | 3 A |
| Operating-temperature | -20°C ~ +50°C |
| Total luminous flux | 200 lm |
| Equivalent wattage | 25 W |
| Wattage | 3 W |
| Powerfactor | >0.90 |
| Frequency | 50/60Hz |
| Saw size | 33 mm |
| Can be driven over | No |
Dimensions & weights
| Built-in depth | 21.5 mm |
|---|---|
| Diameter spot | 33 mm |
| Length | 33 mm |
| Height | 21.5 mm |
| Width | 33 mm |
| Cable length | 5 m |
General
| EAN | 8720365422256 |
|---|---|
| Brand | HOFTRONIC |
| Warranty | 2 year |
| Quantity | 1 |
| Certifications | CE, RoHs |
| Warranty exemption | Not installed or used according to the manual |
Other specifications
| Dimming technique | Trailing Edge |
|---|
Light source
| CRI | >80Ra |
|---|---|
| Including light source | Yes |
| Wattage per lightsource | 3 W |
| Lightsource replaceable | No |
| Number of light points | 1 |
| Lumen per lightpoint | 200 lm |
| Switching cycles | 20000 |
| Lumen per watt | 70 Lm/W |
| Energy label | |
| Light color | Extra warm white |
| Flickerfree | Yes |
| Light type | Direct |
| Beam angle | 45 ° |
| Tiltable | No |
| Lifespan | 25000 h |
| Dimmable | Yes |
Installation
| Ground wire | No |
|---|---|
| Connection voltage | 12V DC |
| Suitable for ceiling type | Suspended, Aluminum porch, Wood porch, System ceiling |
| Suitable for indoor outdoor | Indoor & outdoor |
| Mounting | Built-in, Surface mounted |
| Cable with plug | No |
| Including cable | Yes |
Color and material
| Color | Stainless steel |
|---|---|
| Material | Aluminum |
Packaging
| Packaging type | Bag |
|---|---|
| Quantity mastercarton | 120 |
| Packaging weight | 10 g |
