HOFTRONIC™ - PIR motion sensor with twilight switch - 360° - range 6 meter - Maximum 300 Watt - IP20 - recessed - black

Mini Recessed Motion Detector with 360° Twilight Switch Black

Looking for a recessed motion detector that can be installed in any false ceiling, is fully adjustable and has a 360° coverage angle? Then choose this extra slim PIR motion detector with twilight switch. The motion detector has a detection range of 6 metres.

Product benefits

• Mini sensor: This motion sensor has a diameter of only 50mm, making it easy to install in small spaces.
• Small cut size: The motion sensor has a cutting size of 45mm.
• Adjustable twilight switch: The twilight switch is fully adjustable between 3 and 2000 lux.
• Adjustable motion sensor: You can set the delay time of the sensor between 3 seconds and 15 minutes.
• Easy installation: Spring clip installation means you can easily clip the motion sensor into the suspended ceiling.
• Full coverage angle: The motion sensor has a maximum coverage angle of 360 degrees.
• Detection range: This motion detector has a detection range of 6 metres.
• IP20 Dustproof: The motion detector is IP20 dustproof. It is suitable for use in dry areas such as a stairwell cupboard.
• For all lights: The motion sensor is suitable for all types of lamps. You can connect up to 300 watt LED lamps and energy saving light bulbs to the sensors.

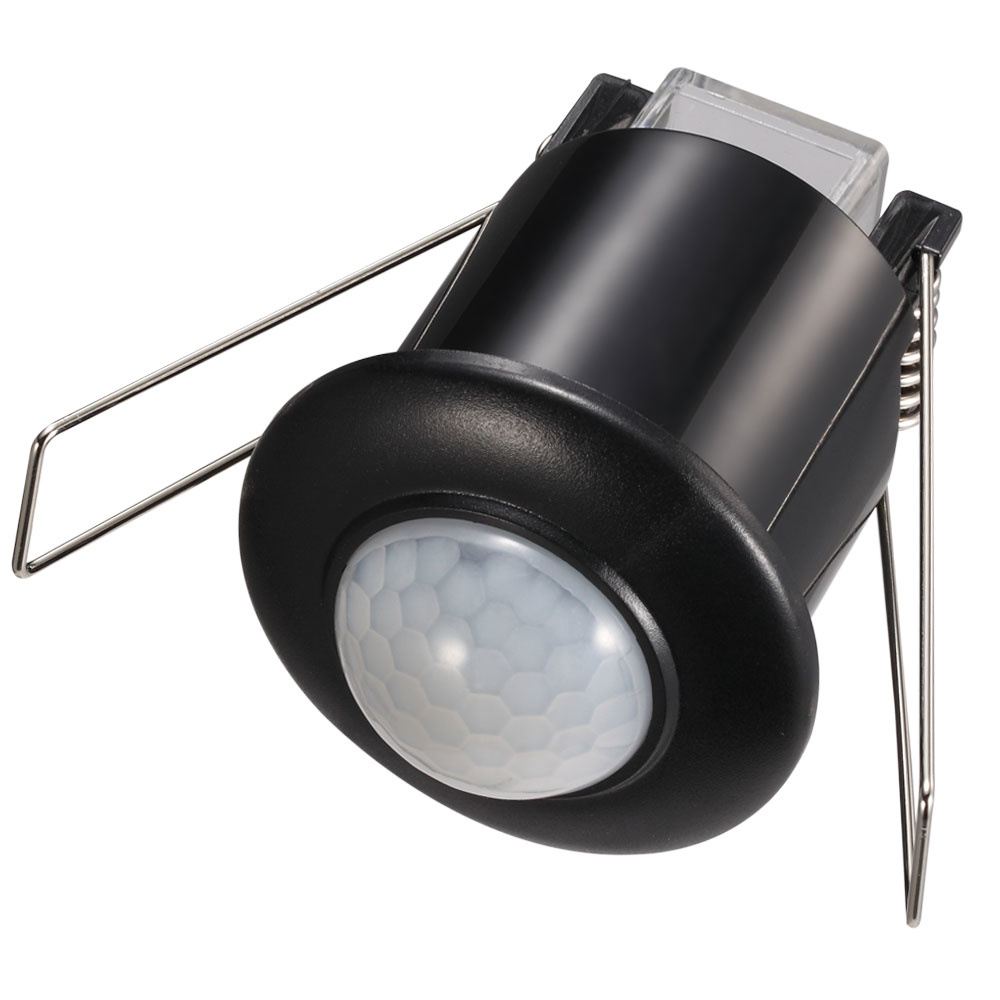

Mini motion detector

This motion sensor has a diameter of only 50mm. The cutting size is only 45mm. This makes it easy to install in the smallest of spaces. It also ensures that you can place the sensor as close to a corner as possible, making it less likely to be noticed.

The motion sensor is always active, so the light-sensitive switch only works with the motion sensor. The motion sensor cannot be used separately. If you set the twilight switch to a certain LUX (total light environment) level, it will only switch on at that level when motion is detected. The functions cannot be disabled separately.

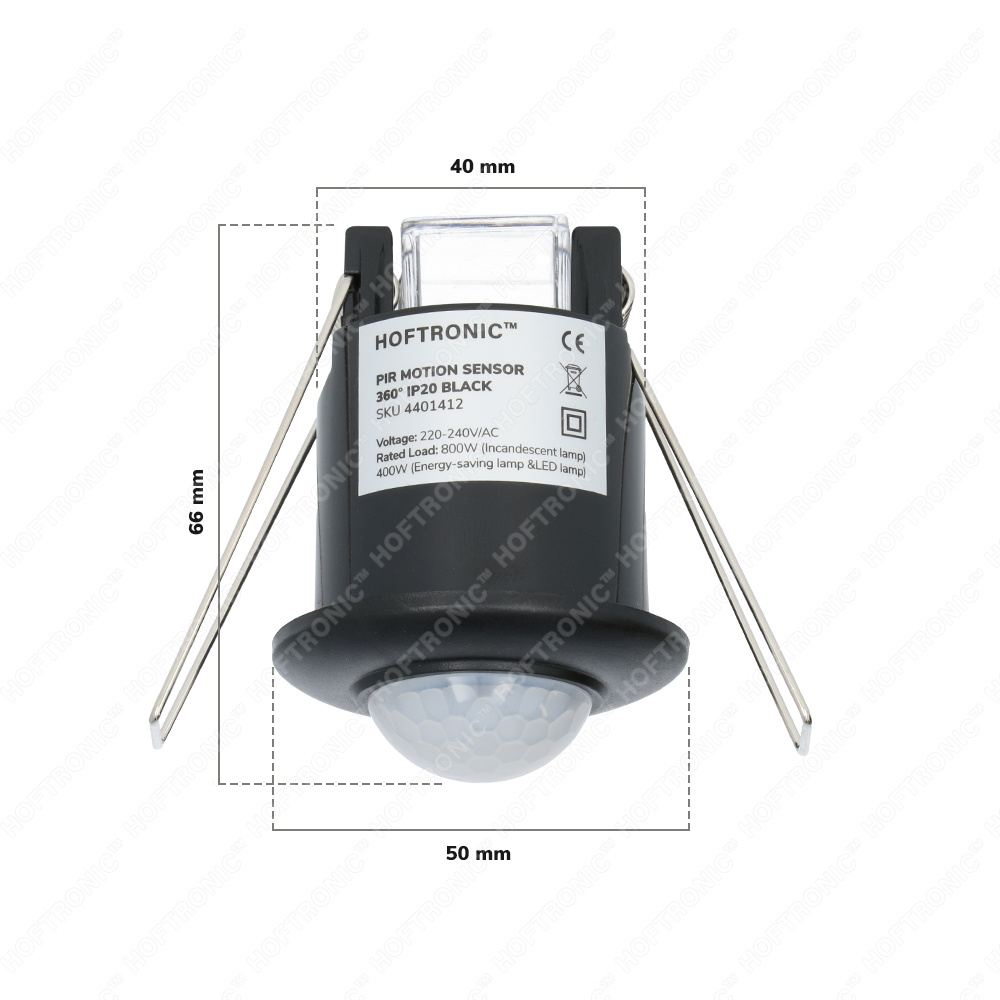

Installation dimensions

• Cut-out size: 45 mm
• Installation depth: 70 mm
• Diameter: 50mm

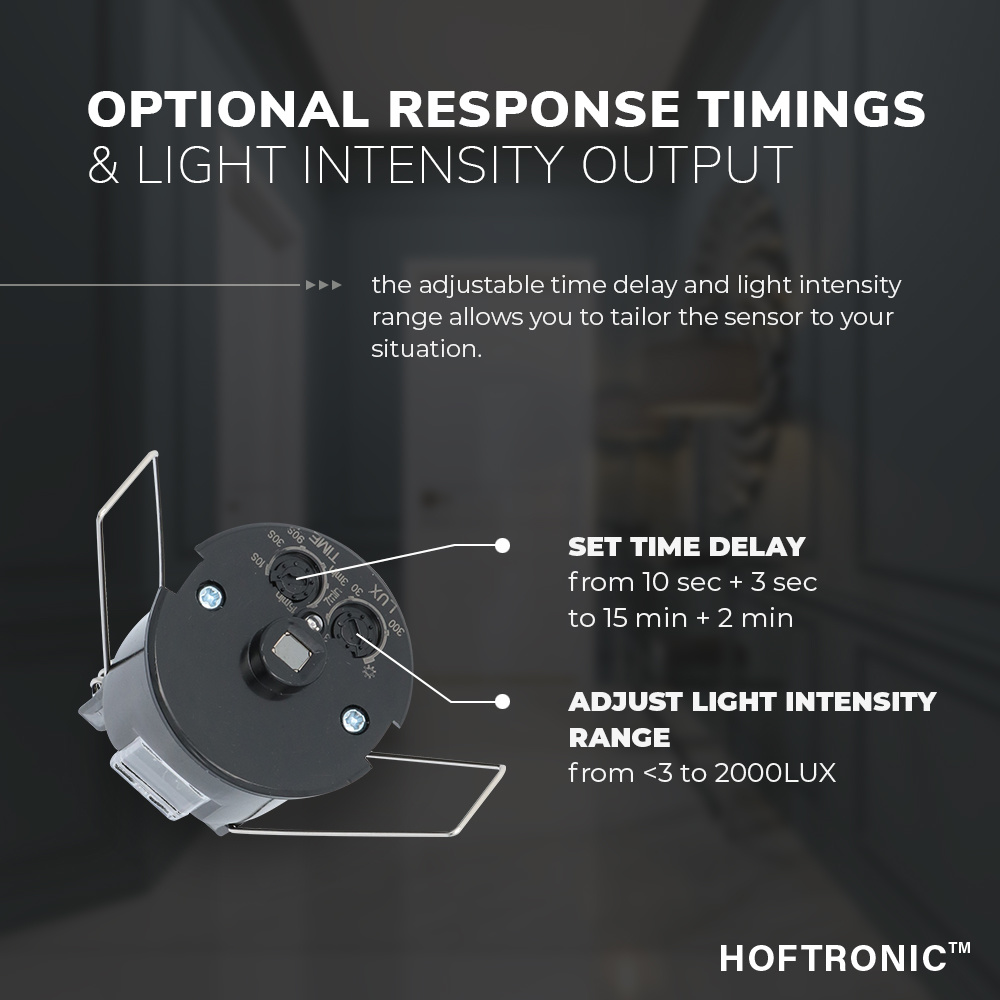

Adjustable motion sensor

The motion sensor is set by the delay time. The delay time is how long the connected lights stay on after motion is detected. You can set it to the following settings 10 seconds, 30 seconds, 1.5 minutes, 3 minutes, 7 minutes and 15 minutes. The short settings are used for security lighting, for example. The 15-minute setting is ideal for offices and meeting rooms. It keeps the light on all the time when people are in the room. The 2-minute setting could be used in a bathroom, for example.

Adjustable twilight switch

The sensitivity of the twilight switch is also fully adjustable. You set it using the lux value. Lux is another word for light. You can set the sensor to a value between 3 and 2000 lux. At 3 lux, the sensor only works when the room is really dark. At 2000 lux, the light sensor is ignored. This can also be turned off.

Plug and play

The sensor is already set up and works immediately with a pre-installed programme. Of course, you can adjust the sensor yourself as described above. There are two screws on the built-in motion sensor. These can be easily accessed with a flat screwdriver.

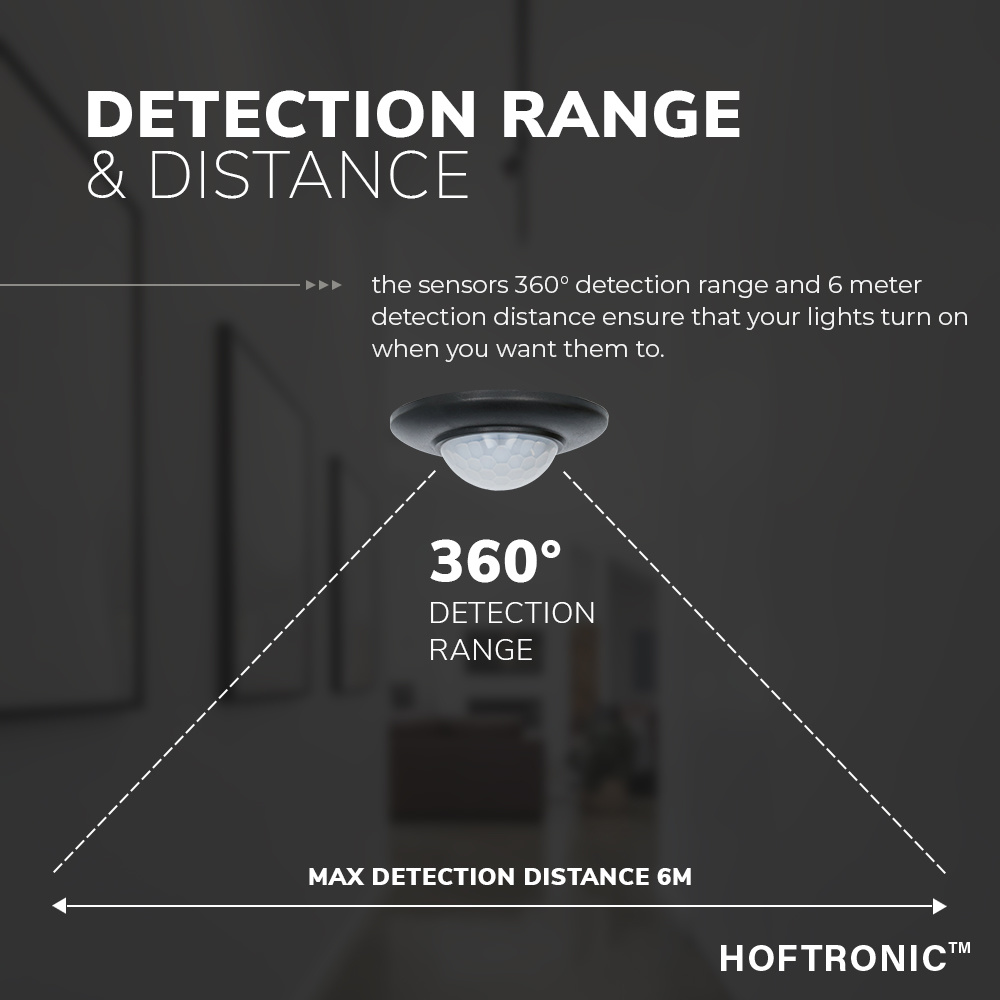

Detection angle and distance

The motion sensor sees every movement in the room thanks to its huge 360-degree viewing angle and 6-metre range. This makes the sensor ideal for all indoor applications. Examples include

• Meeting rooms
• Toilets
• Living rooms
• Attics
• Stairwells

IP20 dust proof

The motion sensor has an IP20 rating. This makes it suitable for use in dusty environments. Consider installing it in the staircase cupboard or behind the bulkhead in the attic.

Suitable for all lamps

The motion sensor is suitable for all lamps. This is because the motion sensor only interrupts the circuit. In other words, it only interrupts the power supply. You can therefore connect all types of lamps to the sensor. Please note that you can connect lamps with a total consumption of up to 200 W.
