PIR motion sensor and twilight switch - 360° - Surface-mounted - 10m range - Max. 1200 Watts - Black
HOFTRONICSKU: 2703790
Product information

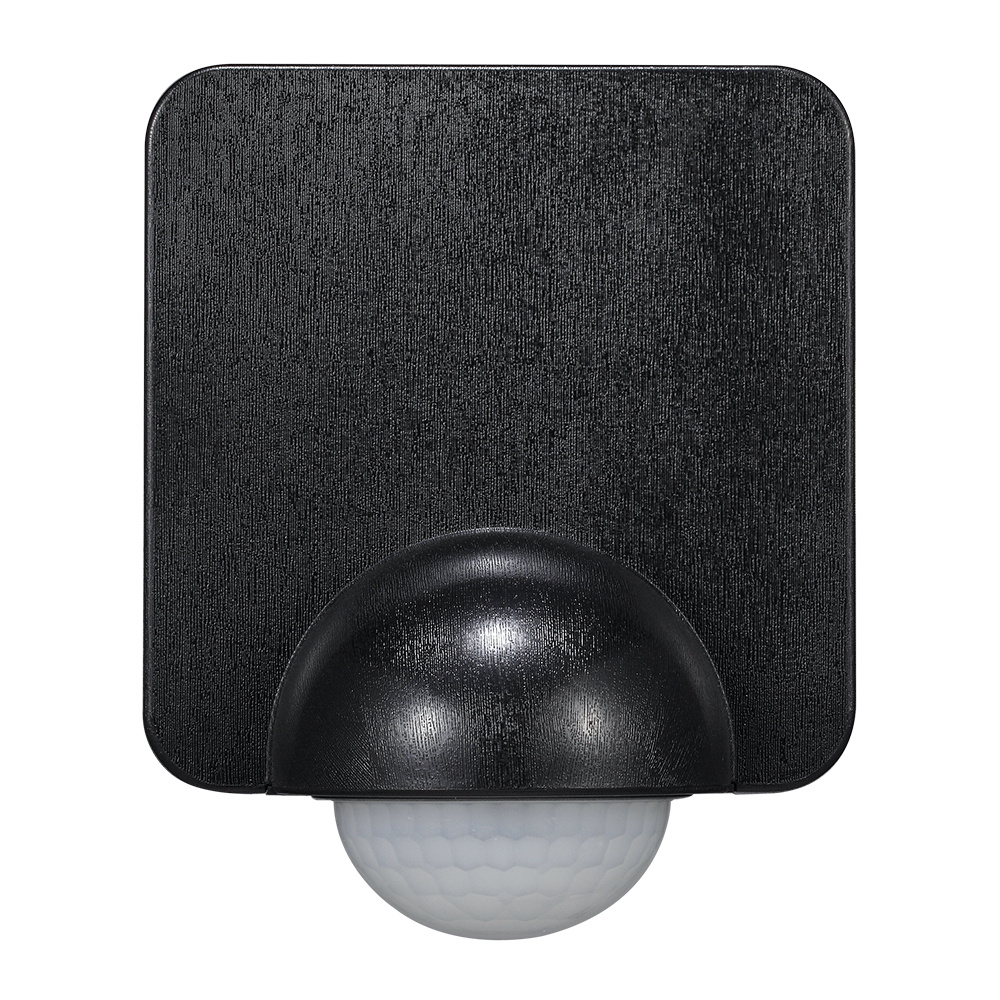

PIR motion sensor and twilight switch - 360° - Surface-mounted - 10m range - Max. 1200 Watts - Black
Product information
PIR motion sensor - with twilight switch - 360° - 10 meter range - Black

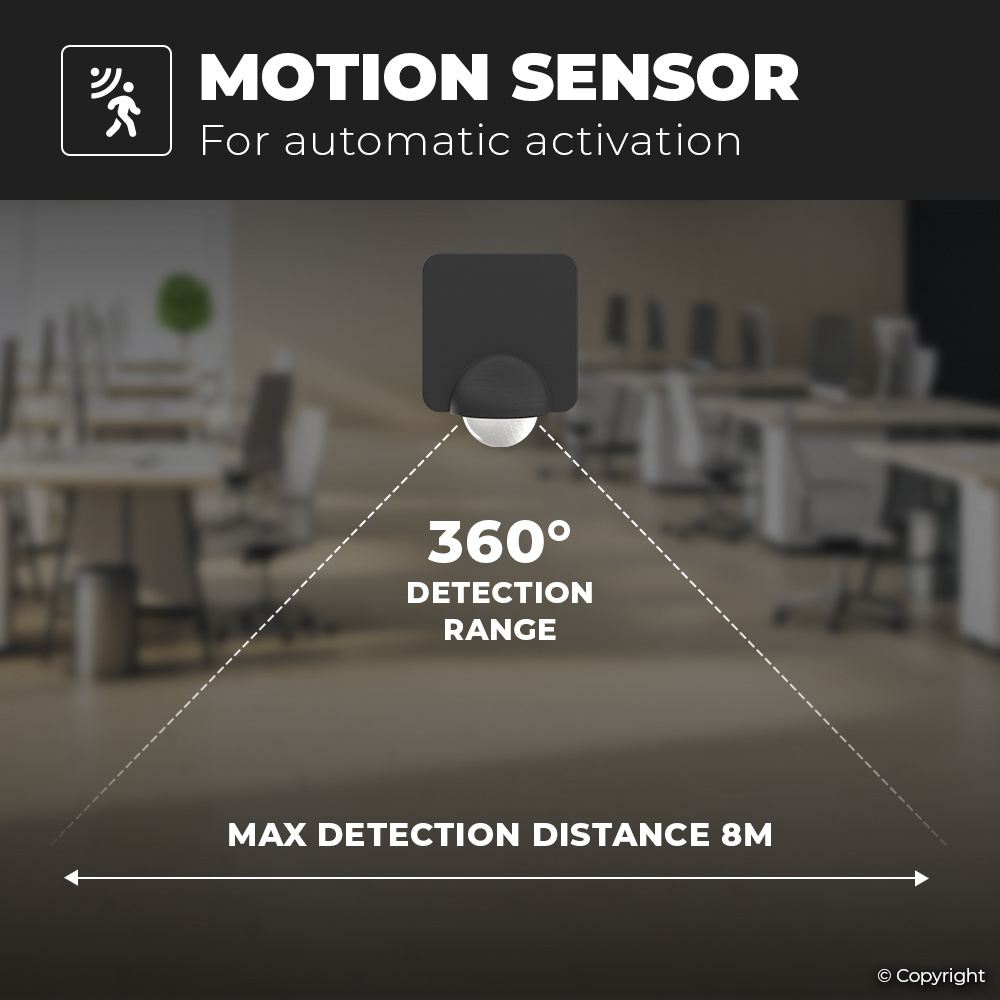

With this infrared motion sensor and twilight switch, your lights will never be on unnecessarily again. The motion sensor ensures that connected lighting only switches on when movement is detected. The twilight switch ensures that lamps only switch on when it is dark enough outside. The sensor has a detection angle of no less than 360 degrees and a detection distance of 8 meters. This ensures that the sensor detects all movements easily.
Both the motion sensor and twilight switch are fully adjustable. So the light sensor always works exactly the way you want it to.
• Motion sensor
With a motion sensor, the lights will only turn on when motion is detected within a 10 meter radius, with a 360-degree range.
• Incl. 2-in-1 sensor
This sensor has both a motion sensor and a twilight sensor. They work independently of each other, so you can set both sensors and switch them on and off as you wish.
• IP20 Dust-proof
This IP rating only protects against dust. This makes the motion sensor suitable for all dry rooms. Think office, bedroom, living room and hallway.
• Suitable for wall mounting
This motion sensor is suitable for wall mounting. It can also be mounted on the ceiling. This makes it suitable for almost any room.
• 2-year warranty
You will receive a comprehensive 2-year all-in warranty on this motion sensor. Defective products will be replaced free of charge within these 2 years. Buy without worries.
• Operating temperature -25 to 50 degrees
This sensor operates under operating temperatures between -25 and 50 degrees. Suitable for barns, cold rooms and even freezers, as well as at the top of very hot warehouses.
PIR motion sensor - with twilight switch - 360° - 10 meter range - Black
With this infrared motion sensor and twilight switch, your lights will never be on unnecessarily again. The motion sensor ensures that connected lighting only switches on when movement is detected. The twilight switch ensures that lamps only switch on when it is dark enough outside. The sensor has a detection angle of no less than 360 degrees and a detection distance of 8 meters. This ensures that the sensor detects all movements easily.
Both the motion sensor and twilight switch are fully adjustable. So the light sensor always works exactly the way you want it to.
• Motion sensor
With a motion sensor, the lights will only turn on when motion is detected within a 10 meter radius, with a 360-degree range.
• Incl. 2-in-1 sensor
This sensor has both a motion sensor and a twilight sensor. They work independently of each other, so you can set both sensors and switch them on and off as you wish.
• IP20 Dust-proof
This IP rating only protects against dust. This makes the motion sensor suitable for all dry rooms. Think office, bedroom, living room and hallway.
• Suitable for wall mounting
This motion sensor is suitable for wall mounting. It can also be mounted on the ceiling. This makes it suitable for almost any room.
• 2-year warranty
You will receive a comprehensive 2-year all-in warranty on this motion sensor. Defective products will be replaced free of charge within these 2 years. Buy without worries.
• Operating temperature -25 to 50 degrees
This sensor operates under operating temperatures between -25 and 50 degrees. Suitable for barns, cold rooms and even freezers, as well as at the top of very hot warehouses.
Key specifications
All specifications
Key specifications
| IP rate | IP54 |
|---|---|
| Operating-temperature | -20°C ~ +45°C |
| Time switch | Yes |
| Max wattage | 1200 W |
Key specifications
| IP rate | IP54 |
|---|---|
| Operating-temperature | -20°C ~ +45°C |
| Time switch | Yes |
| Max wattage | 1200 W |
Color and material
| Color | Black |
|---|---|
| Material | Plastic |
Sensor
| Delay time | 10sec-3sec to 7min-2min (adjustable) |
|---|---|
| Type sensor | PIR motion sensor |
| Detection angle | 360 ° |
| Sensor changeable | No |
| Detection distance | 10 m |
| Detection movement speed | 0.6-1.5 m/s |
| Dusk sensor overwrite mode | No |
| Sensor settings adjustable | Yes |

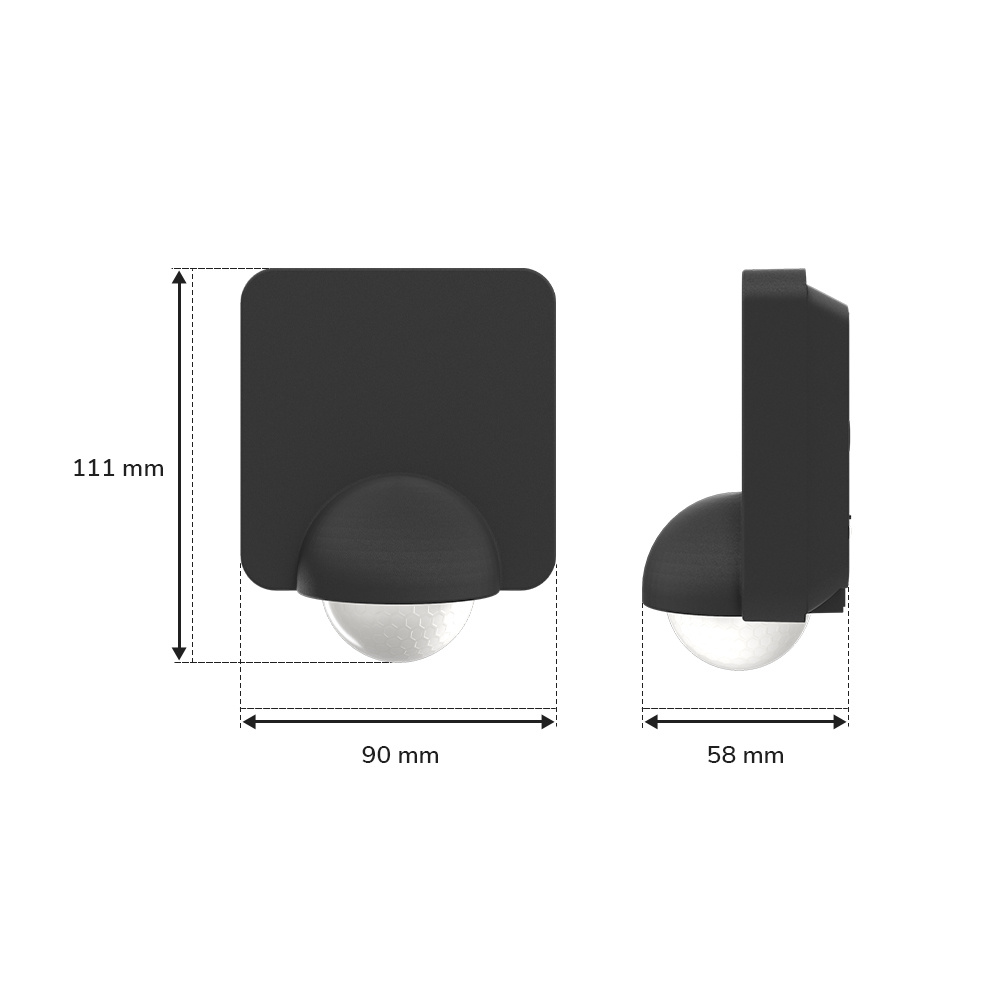

Dimensions & weights
| Width | 90 mm |
|---|---|
| Height | 58 mm |
| Length | 111 mm |
| Width of mounting plate | 98 mm |
General
| EAN | 8720722703790 |
|---|---|
| Brand | HOFTRONIC |
| Warranty | 2 year |
| Certifications | CE, RoHs |
| Warranty exemption | Not installed or used according to the manual |
Installation
| Placement type | Wall |
|---|---|
| Connection voltage | 220-240V AC |
| Suitable for indoor outdoor | Indoor |
| Mounting | Surface mounted |
Packaging
| Packaging type | Box |
|---|---|
| Packaging width | 70 mm |
| Packaging height | 115 mm |
| Packaging length | 100 mm |
| Quantity in packaging | 1 |
| Quantity mastercarton | 50 |
