HOFTRONIC™ - Wireless LED Receiver - Up to 100 watts - IP20 - 2 years warranty
- Article number: SR-1009SAC
INTOLED delivery time
Delivery time
We do everything to deliver the ordered items to you on time. In some cases, circumstances may cause a delivery to be delayed. If this is the case, please contact our customer service.
-
Specifications
Input power: 100-240V AC Output power: 100-240V AC Amount Channels: 1 Output current: 4 x 5A Watts: 100 Watt Input signal: DMX512 DMX address: Digital Operating temperature: -20 +40C IP-rate: IP20 Dimensions: Ø 46.5 mm x H 19 mm EAN: 7438209773761 -
Product description
Wireless LED receiver - Up to 100 Watt
With the wireless LED dimmer, you easily dim and switch your LED lighting. The minimum brightness function makes it easy to set the minimum brightness of your lighting. This wireless LED receiver has a maximum output of 100 Watts. The SR-1009SAC wireless LED receiver is suitable for the wall dimmers type: SR-2833K1 and SR-2833K2.
- Compact dimmer: With a diameter of 46.5mm and a height of 19mm, you can easily conceal the dimmer. Thanks to the small dimensions of this wireless LED receiver, it can be installed in many places. For example, it (almost) always fits above the ceiling, in most junction boxes, wall boxes, and so on.
- Suitable for different wall dimmers: The wireless receiver is suitable for the wall dimmers: SR-2833K1 and SR-2833K2
- Easy installation: You easily place the LED receiver between the 230 Volt connection and the connection of your lighting's transformer or driver.
- Easy to learn your remote control: The ''Learn'' button makes it easy to link your RF remote control (SR-2833N-Z5). Please note this is not included.
Easy to install

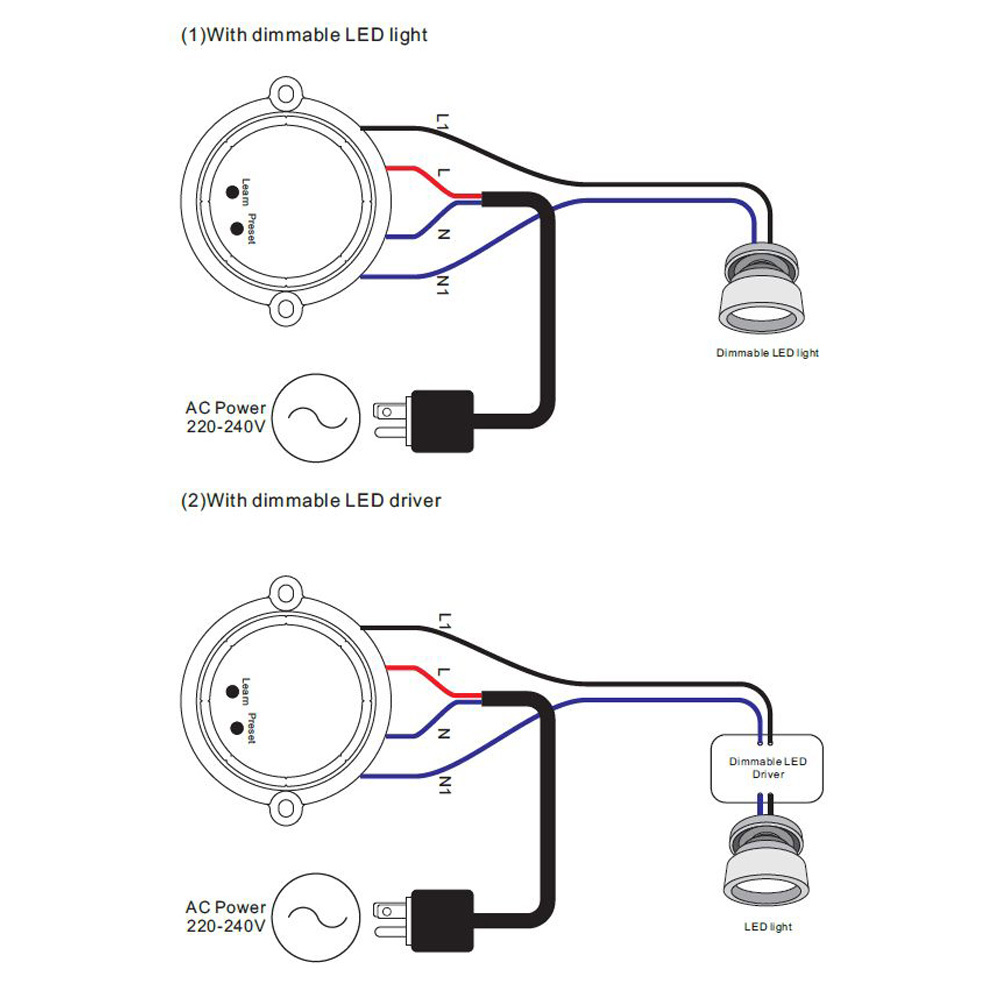

To install the dimmer set, it can easily be placed between the light source and the power point. The N (neutral) wire goes into the dimmer on one side and then comes out on the other side, towards the light source. The same principle is used for the L (line). Thanks to this set-up, you install this wireless dimmer set within minutes, without the help of a mechanic!
Including 'smart memory
This wireless dimmer set features a smart memory function. This means that the dimmer remembers at what power your LED lights are on, when you switch them off. When you switch the lights on again, the dimmer ensures that your lamps and/or spotlights burn as bright (or dim) as before.
100-watt receiver
The LED dimmer is an innovative phase-cut dimmer with an RF function that allows you to link the wall dimmer and control your lighting. The dimmer is equipped with a large input voltage and output voltage range of 100-240V AC, so you can control a lot of different lamps. The dimmer has one channel, so you can create 1 group with it. However, it is possible to create several groups with your lights and control them via the same wall dimmer. You then install a separate LED dimmer for each group. The dimmer has a maximum capacity of 100 Watt, so with an average consumption of 5 Watt per GU10 spotlight, you can connect up to 20 GU10 spots to one dimmer! This wireless dimmer has an innovative minimum brightness setting that allows you to set a minimum brightness so you can dim back to the set minimum at most.
What is supplied
LED receiver with attached 2 short cords (approx. 15 cm) to connect to your 230 Volt and 2 short cords (approx. 15 cm) to connect to your 230 Volt of your transformer / driver / LED spotlight, LED panel etc.
- Downloads
Wireless LED receiver - Up to 100 Watt
With the wireless LED dimmer, you easily dim and switch your LED lighting. The minimum brightness function makes it easy to set the minimum brightness of your lighting. This wireless LED receiver has a maximum output of 100 Watts. The SR-1009SAC wireless LED receiver is suitable for the wall dimmers type: SR-2833K1 and SR-2833K2.
- Compact dimmer: With a diameter of 46.5mm and a height of 19mm, you can easily conceal the dimmer. Thanks to the small dimensions of this wireless LED receiver, it can be installed in many places. For example, it (almost) always fits above the ceiling, in most junction boxes, wall boxes, and so on.
- Suitable for different wall dimmers: The wireless receiver is suitable for the wall dimmers: SR-2833K1 and SR-2833K2
- Easy installation: You easily place the LED receiver between the 230 Volt connection and the connection of your lighting's transformer or driver.
- Easy to learn your remote control: The ''Learn'' button makes it easy to link your RF remote control (SR-2833N-Z5). Please note this is not included.
Easy to install
To install the dimmer set, it can easily be placed between the light source and the power point. The N (neutral) wire goes into the dimmer on one side and then comes out on the other side, towards the light source. The same principle is used for the L (line). Thanks to this set-up, you install this wireless dimmer set within minutes, without the help of a mechanic!
Including 'smart memory
This wireless dimmer set features a smart memory function. This means that the dimmer remembers at what power your LED lights are on, when you switch them off. When you switch the lights on again, the dimmer ensures that your lamps and/or spotlights burn as bright (or dim) as before.
100-watt receiver
The LED dimmer is an innovative phase-cut dimmer with an RF function that allows you to link the wall dimmer and control your lighting. The dimmer is equipped with a large input voltage and output voltage range of 100-240V AC, so you can control a lot of different lamps. The dimmer has one channel, so you can create 1 group with it. However, it is possible to create several groups with your lights and control them via the same wall dimmer. You then install a separate LED dimmer for each group. The dimmer has a maximum capacity of 100 Watt, so with an average consumption of 5 Watt per GU10 spotlight, you can connect up to 20 GU10 spots to one dimmer! This wireless dimmer has an innovative minimum brightness setting that allows you to set a minimum brightness so you can dim back to the set minimum at most.
What is supplied
LED receiver with attached 2 short cords (approx. 15 cm) to connect to your 230 Volt and 2 short cords (approx. 15 cm) to connect to your 230 Volt of your transformer / driver / LED spotlight, LED panel etc.
Input power: | 100-240V AC |
Output power: | 100-240V AC |
Amount Channels: | 1 |
Output current: | 4 x 5A |
Watts: | 100 Watt |
Input signal: | DMX512 |
DMX address: | Digital |
Operating temperature: | -20 +40C |
IP-rate: | IP20 |
Dimensions: | Ø 46.5 mm x H 19 mm |
EAN: | 7438209773761 |
Wireless LED receiver - Up to 100 Watt
With the wireless LED dimmer, you easily dim and switch your LED lighting. The minimum brightness function makes it easy to set the minimum brightness of your lighting. This wireless LED receiver has a maximum output of 100 Watts. The SR-1009SAC wireless LED receiver is suitable for the wall dimmers type: SR-2833K1 and SR-2833K2.
- Compact dimmer: With a diameter of 46.5mm and a height of 19mm, you can easily conceal the dimmer. Thanks to the small dimensions of this wireless LED receiver, it can be installed in many places. For example, it (almost) always fits above the ceiling, in most junction boxes, wall boxes, and so on.
- Suitable for different wall dimmers: The wireless receiver is suitable for the wall dimmers: SR-2833K1 and SR-2833K2
- Easy installation: You easily place the LED receiver between the 230 Volt connection and the connection of your lighting's transformer or driver.
- Easy to learn your remote control: The ''Learn'' button makes it easy to link your RF remote control (SR-2833N-Z5). Please note this is not included.
Easy to install
To install the dimmer set, it can easily be placed between the light source and the power point. The N (neutral) wire goes into the dimmer on one side and then comes out on the other side, towards the light source. The same principle is used for the L (line). Thanks to this set-up, you install this wireless dimmer set within minutes, without the help of a mechanic!
Including 'smart memory
This wireless dimmer set features a smart memory function. This means that the dimmer remembers at what power your LED lights are on, when you switch them off. When you switch the lights on again, the dimmer ensures that your lamps and/or spotlights burn as bright (or dim) as before.
100-watt receiver
The LED dimmer is an innovative phase-cut dimmer with an RF function that allows you to link the wall dimmer and control your lighting. The dimmer is equipped with a large input voltage and output voltage range of 100-240V AC, so you can control a lot of different lamps. The dimmer has one channel, so you can create 1 group with it. However, it is possible to create several groups with your lights and control them via the same wall dimmer. You then install a separate LED dimmer for each group. The dimmer has a maximum capacity of 100 Watt, so with an average consumption of 5 Watt per GU10 spotlight, you can connect up to 20 GU10 spots to one dimmer! This wireless dimmer has an innovative minimum brightness setting that allows you to set a minimum brightness so you can dim back to the set minimum at most.
What is supplied
LED receiver with attached 2 short cords (approx. 15 cm) to connect to your 230 Volt and 2 short cords (approx. 15 cm) to connect to your 230 Volt of your transformer / driver / LED spotlight, LED panel etc.
