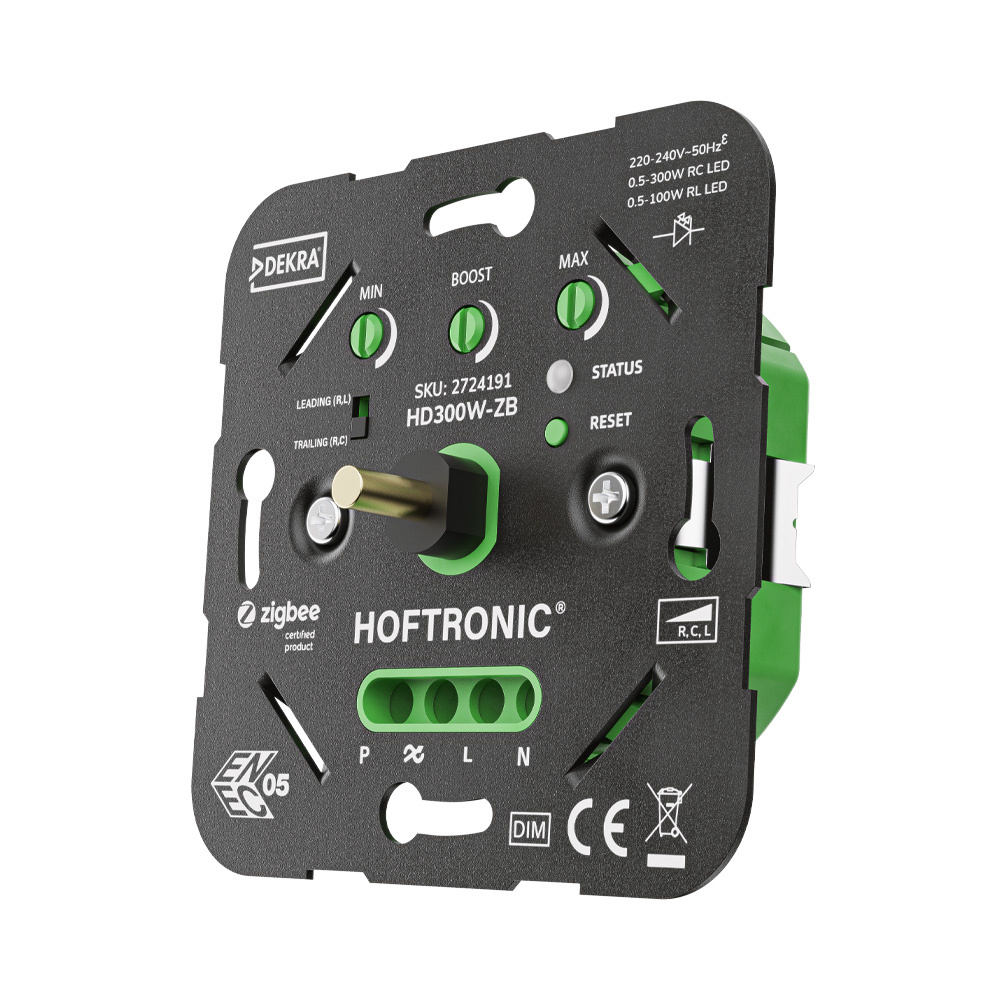

HOFTRONIC™ - Smart Zigbee LED dimmer - 0.5 - 300 watts - Suitable for trailing edge & leading edge - Multiway control - Recessed dimmer - Universal

Rotary Smart Zigbee LED Dimmer - 0.5-300W - Leading Edge and Trailing Edge

Want to be able to dim your LED lighting optimally without buzzing or flickering, and with the convenience of smart control? Then this Smart Zigbee LED dimmer from HOFTRONIC is exactly what you are looking for. With a maximum power of 300 watts (RC), support for both trailing edge and leading edge, and Zigbee integration, you have complete control over your lighting both manually and wirelessly.

The big advantage? Not only can you adjust the light steplessly to suit your situation, you can also control it easily via your smartphone, voice assistant or remote control. From bright work lighting to soft mood lighting: with this smart dimmer, you can effortlessly adjust everything to your daily rhythm and wishes.

Product features

• Universally applicable: Suitable for all dimmable LED lighting from 0.5 to 100 watts (RL) and 0.5 to 300 watts (RC). This makes it ideal for both phase-leading and phase-trailing applications.
• Full control over light level: Adjust the dimming level precisely via three setting points: MIN, MAX and BOOST.
• Silent dimming: No buzzing or humming thanks to high-quality electronic components.

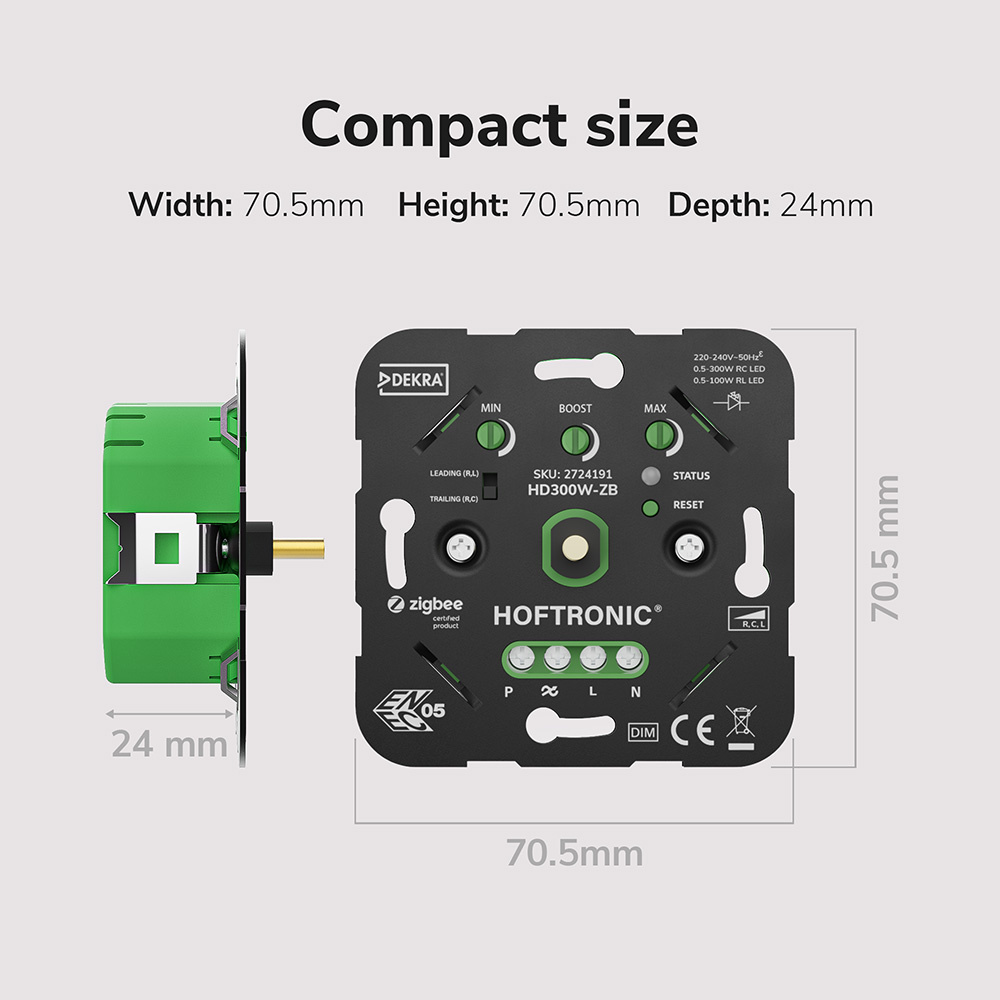

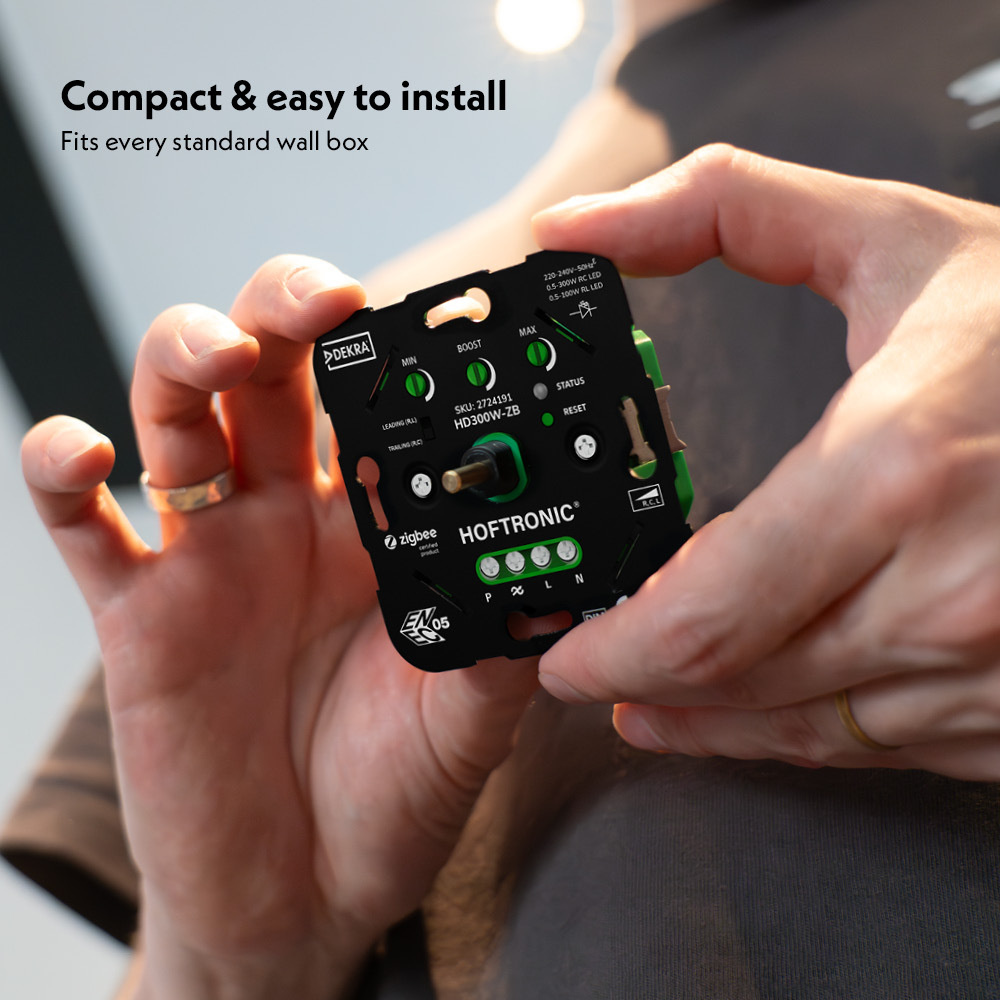

• Compact size: Fits in standard flush-mounted boxes (DIN 49073, 70.5 x 70.5 x 24 mm).
• Switchable dimming principle: A slide switch allows you to easily set the dimmer to trailing edge or leading edge.
• Smart Zigbee integration: Suitable for use with Google Assistant/Home, Amazon Alexa, Philips Hue, HOMEY, Trust, Aduro Smart, Aeotec SmartThings and IKEA Dirigera.
• TouchLink functionality: Quickly connect a Zigbee remote control directly to the dimmer – without the need for a hub or bridge.
• Automatic protection: The dimmer switches itself off automatically in the event of a short circuit, overload or overheating. This prevents damage to your lighting and increases safety in your home.

Smart Zigbee integration for complete smart home control

This LED dimmer is equipped with Zigbee technology, allowing you to effortlessly connect it to virtually any popular smart home platform. You can easily control your lighting with voice commands, via an app on your smartphone or through automations and scenarios that you set yourself. Whether you want to dim the lights remotely, set a schedule or have the lighting respond automatically to other smart devices, the Rotary Smart Zigbee LED dimmer makes it possible.

Thanks to its broad Zigbee support, the dimmer is compatible with:

• Google Assistant / Google Home
• Amazon Alexa
• Philips Hue bridge
• Homey
• Trust Smart Home (KlikAanKlikUit)
• IKEA Dirigera hub
• Aduro Smart
• Aeotec SmartThings (Samsung)

This smart dimmer is easy to integrate into your existing smart system. You don't need to purchase or switch to a new system, and the connection is quick and easy. Zigbee also offers advantages such as a stable network, low energy consumption and fast communication with other Zigbee devices in your home.

TouchLink functionality without a hub

Thanks to the built-in TouchLink functionality, you can connect this dimmer directly to a Zigbee remote control without the need for a hub or gateway. This makes smart control accessible to users without a complete smart home system. A perfect solution for those who want to use smart functions without too many technical components.

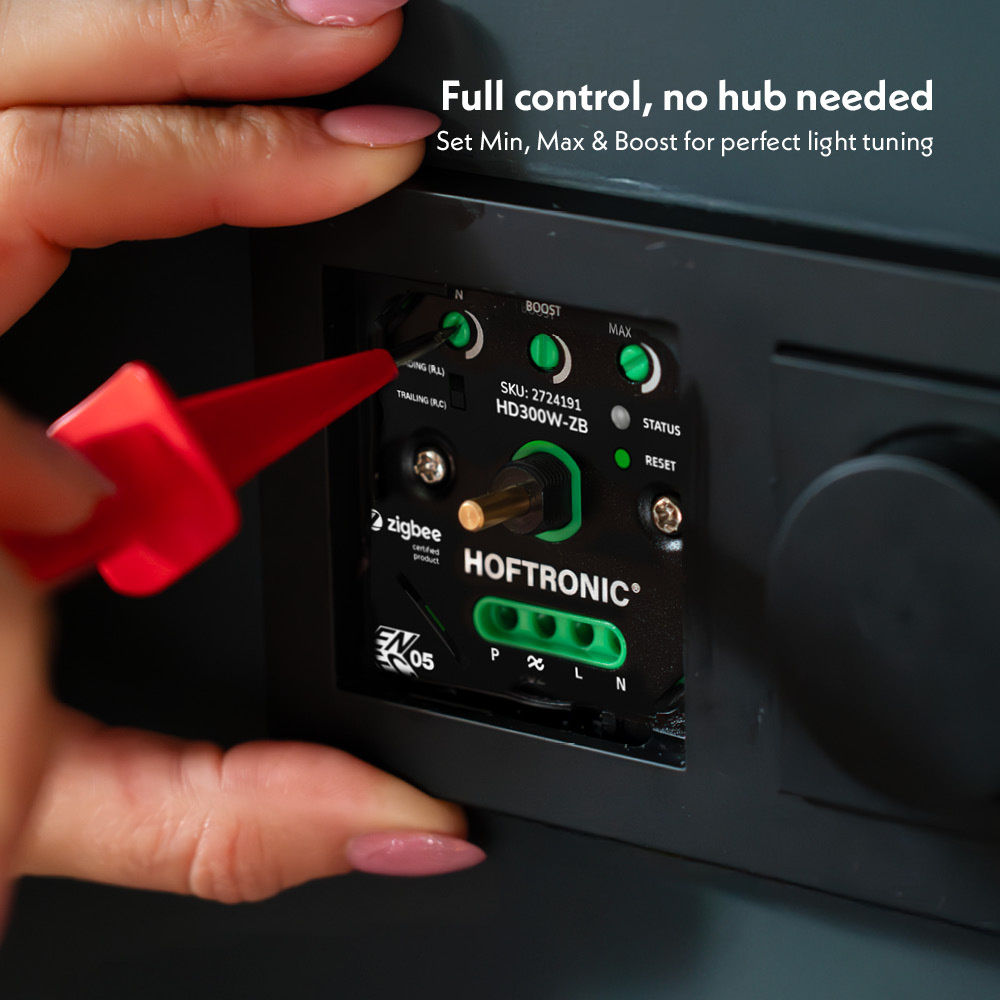

Set the LED dimmer with MIN, MAX & BOOST

This built-in dimmer is equipped with three handy adjustment screws that allow you to fine-tune the lighting to your situation. These settings are located on the front of the dimmer and can be easily adjusted with a small screwdriver:

• MIN – Set minimum brightness: This sets the lowest light level at which your lights will remain stable. This prevents flickering or flashing when you want to dim the light, especially with sensitive LED bulbs.
• MAX – Limit maximum brightness: This setting determines the maximum brightness of the bulb. This is useful if, for example, you do not need full light in a small room or want to save energy.
• BOOST – Increase start-up power: This function gives lamps a short extra pulse when they are switched on, so that they start up evenly and simultaneously. This prevents the ‘popcorn effect’, where lamps light up one by one instead of gently coming on at the same time.

Thanks to these three settings, you can fully tailor the LED dimmer to the type of lighting you use, from LED filament to recessed downlights. Setting it up only takes a few minutes, but ensures that your lighting always does exactly what you want.

Switchable dimming principle: trailing & leading edge

A simple slide switch allows you to adjust the dimming principle to your lighting: choose between trailing edge (RC) or leading edge (RL). This dimmer works with almost all dimmable LED bulbs, including sensitive models or older fixtures.

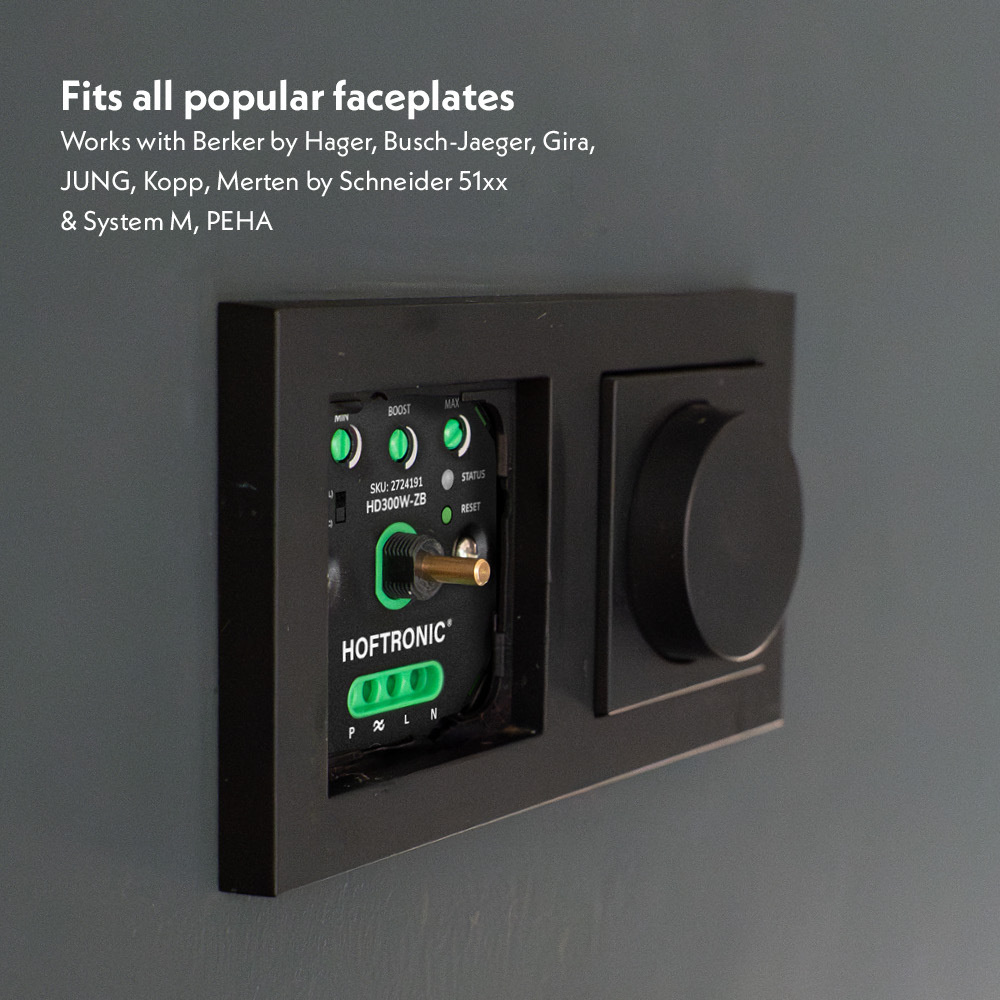

Compatible with popular cover frames

You don't have to worry about whether your existing cover frame will fit. This built-in WiFi LED dimmer is suitable for almost all well-known brands, including:

• Berker by Hager
• Busch-Jaeger
• Gira
• JUNG
• Kopp
• Merten by Schneider 51xx and System M
• Niko xxx-31003 (with Niko adapter) and xxx-31000
• PEHA
• Dimmer knob with D-shaped hole, such as Wintop, Plieger, GAMMA Everest * (only when using adapter with D-shape)

Thanks to the smart design and the included mounting materials, the dimmer for LED lighting always fits neatly. Includes additional mounting materials for the following brands:

• JUNG: Washer, nuts and screws
• Busch-Jaeger: Ashuls and metal ring

Suitable for almost all dimmable lamps

Whether you work with modern LED filament lamps, classic dimmable LED spotlights or a mix of lighting types: this universal dimmer can handle it. Thanks to its range of 0.5 to 300 watts, the LED dimmer works flawlessly with:

• LED filament lamps
• Recessed and surface-mounted spotlights
• Dimmable E27 lamps
• Other dimmable LED luminaires

The trailing edge dimming technology ensures that even sensitive lamps are dimmed smoothly and quietly, without flickering or interference.

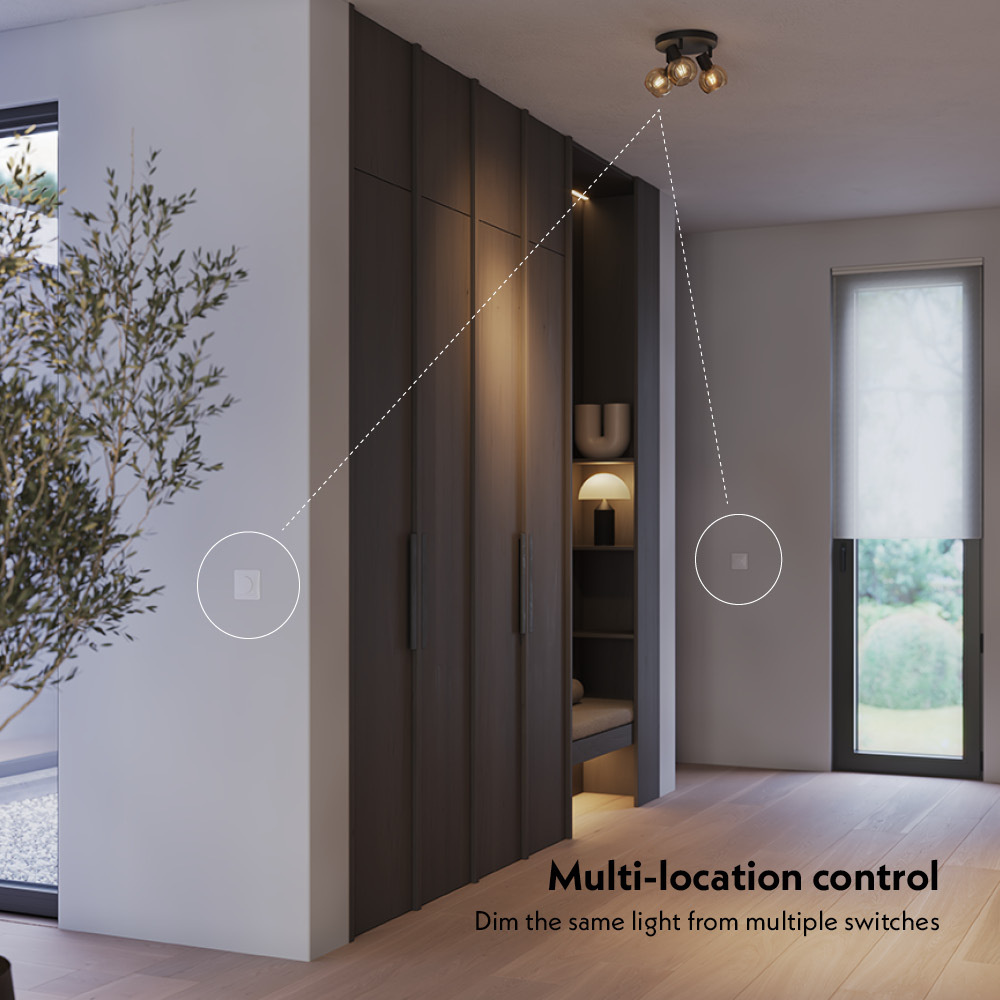

Smart control with Multiway Control

This smart LED dimmer uses a master-slave control system, in which multiple dimmers are connected to each other. One dimmer acts as the master, the other(s) as slaves. When you dim or switch on the lighting via one of the dimmers, the other dimmers automatically adopt this setting. This allows you to control and dim a single lighting group from multiple locations, with consistent light settings regardless of where you operate the controls.

The advantages of a multiway control dimmer:

• Smart control of your lighting: With multiway control, you can control and dim the same lighting from multiple switches or locations in your home. This is especially useful in larger spaces, such as living rooms, hallways or on stairs, as you don't have to go back to one specific switch to adjust the light.
• Synchronisation: The dimmers are connected to each other and automatically coordinate the light level. This ensures that the lighting always remains consistent, regardless of which switch you use to dim or turn the light on or off.
• Power supply via neutral wire: This smart Zigbee dimmer requires a neutral wire (N) for a continuous power supply. This is essential to keep the smart functions, such as Zigbee communication, active.
• Expandability: You can easily add multiple dimming points so that you can control the lighting from different places in your home. Ideal if, for example, you want to control the same lights in a long hallway, spacious living room or from both upstairs and downstairs.

Always consult the manual

The smart dimmer comes with a clear, multilingual manual that explains step by step how to connect the dimmer, link it via Zigbee and TouchLink, and set it up using MIN, MAX and BOOST. You will also find information about resetting the dimmer and linking remote controls.

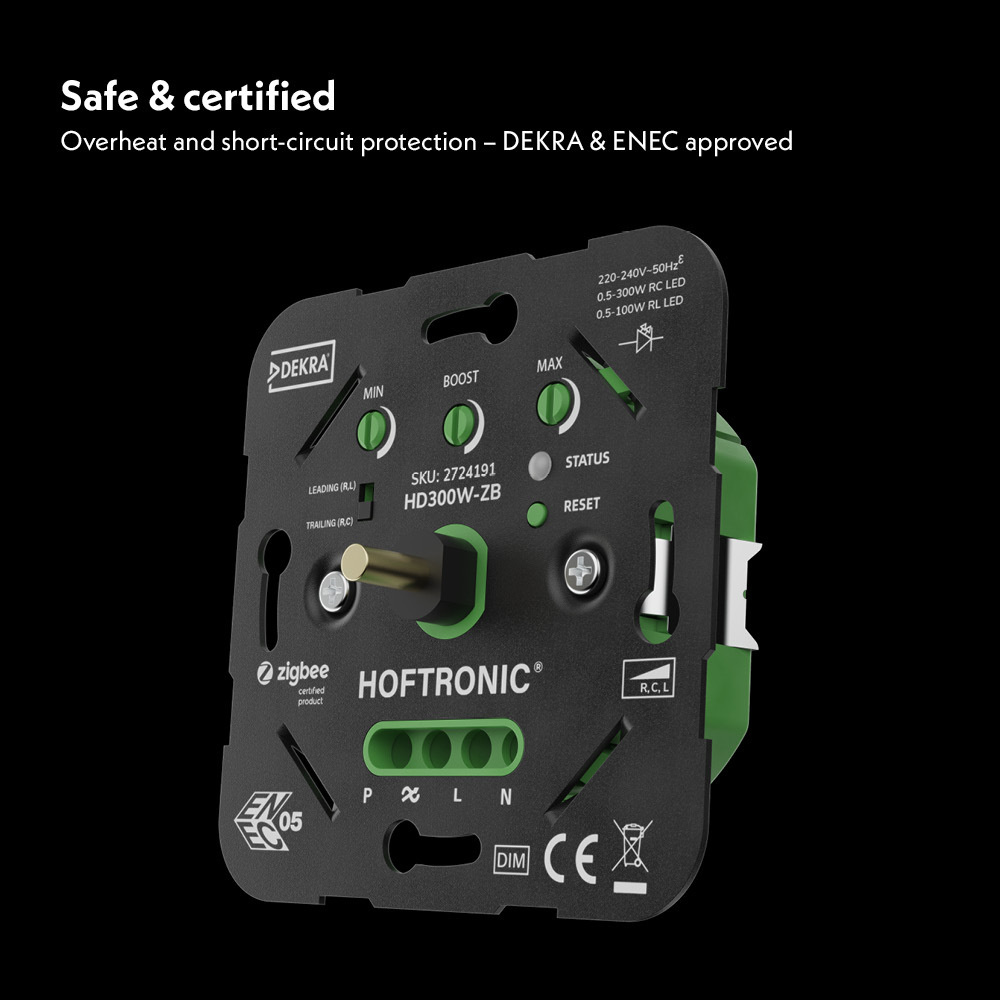

Safety & quality marks

The LED dimmer has automatic protection against overload and overheating. It also complies with European standards IEC60669-2-1, EN55015, EN61547, EN61000-3-2 and EN61000-3-3. Equipped with the DEKRA safety mark and the ENEC05 mark, which guarantees independent quality control and compliance with strict safety standards.

Contents:

1x LED Zigbee Dimmer
4x Rotary knob with D-shaped hole (4 and 6 mm)
1x Adapter ring for JUNG
2x Mounting screws (for JUNG or NIKO)
1x Nut for securing central cover plates (without ring)
1x Nut for securing central cover plates (with ring)
1x Mounting ring for Busch-Jaeger and NIKO
