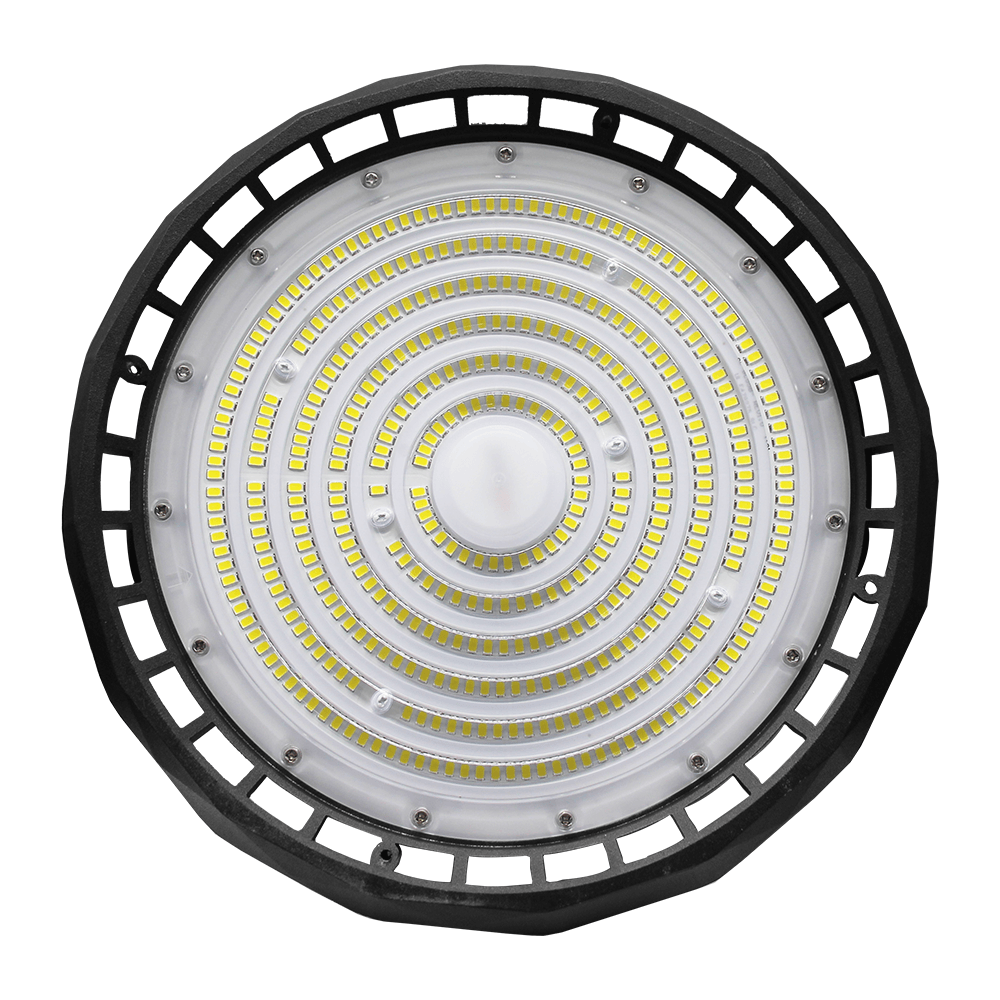

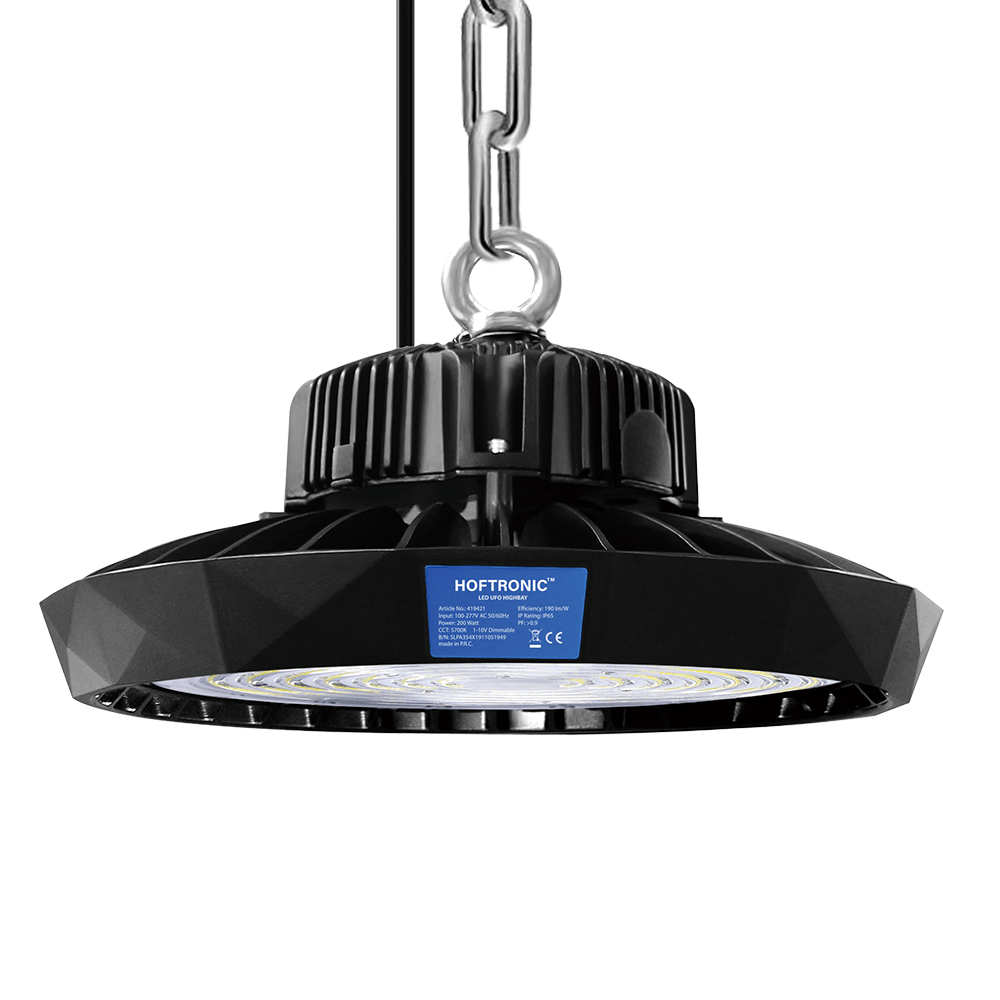

Saturn LED High Bay with 100° reflector and cover - Dimmable - 200 Watts 38.000 lumens (190lm/W) - 5700K daylight white - IP65 waterproof - Bridgelux LEDs
Product information

Saturn LED High Bay with 100° reflector and cover - Dimmable - 200 Watts 38.000 lumens (190lm/W) - 5700K daylight white - IP65 waterproof - Bridgelux LEDs
Saturn LED High Bay - 200W 38.000lm - 5700K - IP65 - 100° reflector - Dimmable
• Saving 84 % (190 lm/W)
This LED high bay shines with an efficiency of 190 lumens per watt. This is an energy saving of up to 84 % in comparison to your current lighting.
• Daylight white light colour - 5700K

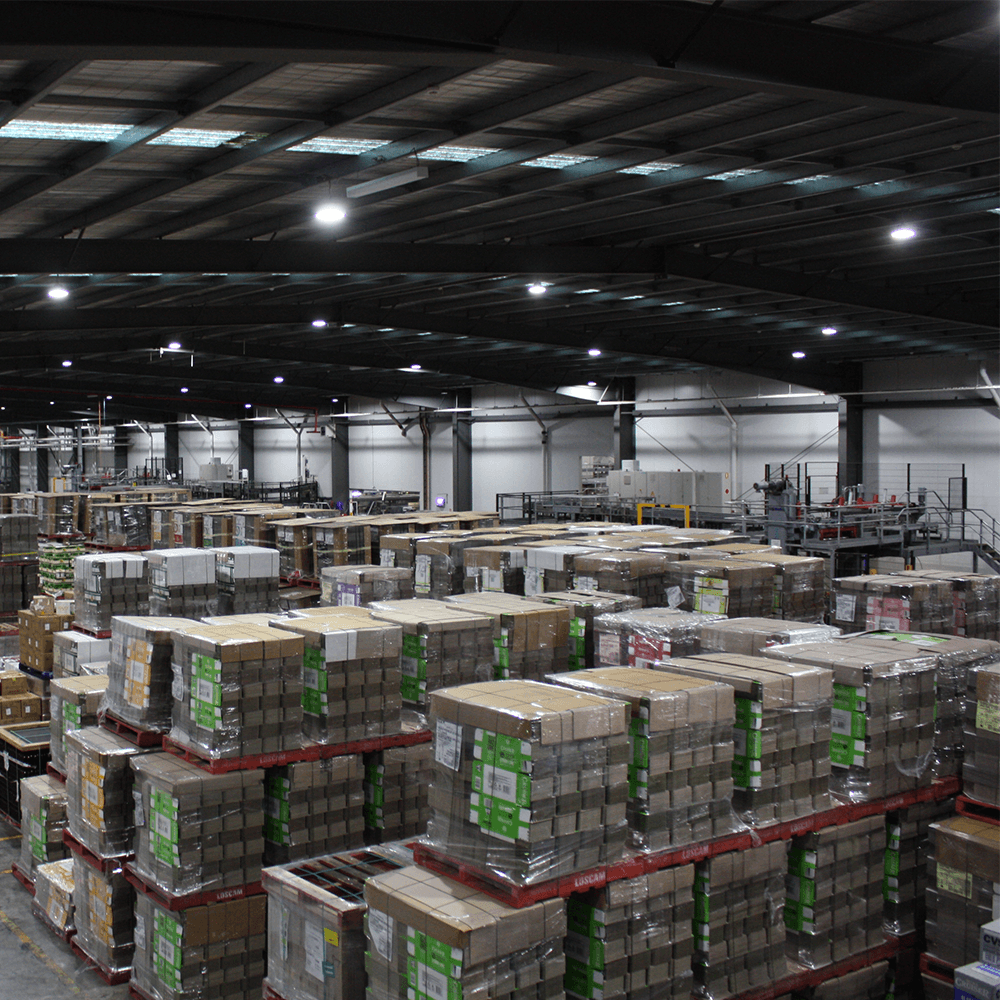

This bright light colour is often chosen for areas where people work all day. Examples include workshops, warehouses and depots. Can best be described as a bright working light colour.
• Continuously dimmable
These LED High Bays are infinitely dimmable from 5% to 100%. Illuminate workspaces properly and dim transport areas and corridors, so you only consume what is really needed.
• Dust- and splash-proof - IP65
This high IP rating means that the LED High Bay will not fail due to moisture and/or dust. This makes this luminaire suitable for the most humid and dusty environments.
• 0.95 Power factor
With a power factor of 0.95, this lamp supplies only 5% reactive current. As a result only 5% additional load is placed on the connected group. Ideal for projects and large installations.
• Optimal heat conduction
The enormous light output of this high bay means that the lamp heats up quickly. Fortunately, the unique cyclonic design ensures that this heat is quickly dissipated.
• 50.000 hours (approx. 20 years)
With a lifetime of 50,000 burning hours, this High Bay will last at least 20 years at 250 days a year and 10 hours a day. No worries about your LED for 20 years.
• Operating temperature -20 to 45 degrees
These LED High Bays operate under operating temperatures between -20° the +45°C, perfect for uninsulated spaces, cold rooms and hot warehouses.
Saturn LED High Bay - 200W 38.000lm - 5700K - IP65 - 100° reflector - Dimmable
• Saving 84 % (190 lm/W)
This LED high bay shines with an efficiency of 190 lumens per watt. This is an energy saving of up to 84 % in comparison to your current lighting.
• Daylight white light colour - 5700K
This bright light colour is often chosen for areas where people work all day. Examples include workshops, warehouses and depots. Can best be described as a bright working light colour.
• Continuously dimmable
These LED High Bays are infinitely dimmable from 5% to 100%. Illuminate workspaces properly and dim transport areas and corridors, so you only consume what is really needed.
• Dust- and splash-proof - IP65
This high IP rating means that the LED High Bay will not fail due to moisture and/or dust. This makes this luminaire suitable for the most humid and dusty environments.
• 0.95 Power factor
With a power factor of 0.95, this lamp supplies only 5% reactive current. As a result only 5% additional load is placed on the connected group. Ideal for projects and large installations.
• Optimal heat conduction
The enormous light output of this high bay means that the lamp heats up quickly. Fortunately, the unique cyclonic design ensures that this heat is quickly dissipated.
• 50.000 hours (approx. 20 years)
With a lifetime of 50,000 burning hours, this High Bay will last at least 20 years at 250 days a year and 10 hours a day. No worries about your LED for 20 years.
• Operating temperature -20 to 45 degrees
These LED High Bays operate under operating temperatures between -20° the +45°C, perfect for uninsulated spaces, cold rooms and hot warehouses.
Key specifications
Key specifications
IP rate | IP65 |
---|---|
Workingvoltage | 230 V |
Output current | 910 mA |
Operating-temperature | -40°C ~ +50°C |
Equivalent wattage | 1000 W |
Light direction | Downlight |
Wattage | 200 W |
Lens material | Polycarbonate (PC) |
Key specifications
IP rate | IP65 |
---|---|
Workingvoltage | 230 V |
Output current | 910 mA |
Operating-temperature | -40°C ~ +50°C |
Equivalent wattage | 1000 W |
Light direction | Downlight |
Wattage | 200 W |
Lens material | Polycarbonate (PC) |
Powerfactor | >0.95 |
Frequency | 50/60Hz |
UGR | <22 |
Dimensions & weights
Weight | 4.5 |
---|---|
Width | 325 mm |
Height | 187 mm |
Length | 325 mm |
Cable length | 100 cm |
Color and material
Color | Black |
---|---|
Material | Aluminum |
RAL Color | RAL 9017 |
Diffuser material | Polycarbonate (PC) |
Diffuser finishing | Transparent |
Other specifications
IK-Value | IK10 |
---|---|
Inrush current | 88 A |
Dimming technique | 1-10V |
Inrush current duration | 12 μs |
Light source
CRI | >70Ra |
---|---|
LB factor | L90B50 |
Colour temperature | 5700K |
Number of light points | 1 |
Switching cycles | 100000 |
Lumen per watt | 190 Lm/W |
Energy label | ![]() |
Light color | Daylight white |
Flickerfree | Yes |
Light type | Direct |
Beam angle | 100 ° |
Lifespan | 50000 h |
Dimmable | Yes |
Amount LEDs | 731 |
General
EAN | 7439628538559 |
---|---|
Brand | HOFTRONIC |
Warranty | 5 year |
Certifications | CE, RoHs, SAA |
Warranty exemption | Not installed or used according to the manual |
Installation
Ground wire | Yes |
---|---|
Placement type | Ceiling, Hanging |
Connection voltage | 100-277V AC |
Suitable for ceiling type | Concrete |
Suitable for indoor outdoor | Indoor & outdoor |
Suggested ceiling height | >10 Meter |
Packaging
Packaging type | Box |
---|---|
Packaging width | 380 mm |
Packaging height | 185 mm |
Packaging length | 380 mm |
Quantity in packaging | 1 |
Quantity mastercarton | 1 |
Key specifications
IP rate | IP65 |
---|---|
Workingvoltage | 230 V |
Output current | 910 mA |
Operating-temperature | -40°C ~ +50°C |
Equivalent wattage | 1000 W |
Light direction | Downlight |
Wattage | 200 W |
Lens material | Polycarbonate (PC) |
Key specifications
IP rate | IP65 |
---|---|
Workingvoltage | 230 V |
Output current | 910 mA |
Operating-temperature | -40°C ~ +50°C |
Equivalent wattage | 1000 W |
Light direction | Downlight |
Wattage | 200 W |
Lens material | Polycarbonate (PC) |
Powerfactor | >0.95 |
Frequency | 50/60Hz |
UGR | <22 |
Dimensions & weights
Weight | 4.5 |
---|---|
Width | 325 mm |
Height | 187 mm |
Length | 325 mm |
Cable length | 100 cm |
Color and material
Color | Black |
---|---|
Material | Aluminum |
RAL Color | RAL 9017 |
Diffuser material | Polycarbonate (PC) |
Diffuser finishing | Transparent |
Other specifications
IK-Value | IK10 |
---|---|
Inrush current | 88 A |
Dimming technique | 1-10V |
Inrush current duration | 12 μs |
Light source
CRI | >70Ra |
---|---|
LB factor | L90B50 |
Colour temperature | 5700K |
Number of light points | 1 |
Switching cycles | 100000 |
Lumen per watt | 190 Lm/W |
Energy label | ![]() |
Light color | Daylight white |
Flickerfree | Yes |
Light type | Direct |
Beam angle | 100 ° |
Lifespan | 50000 h |
Dimmable | Yes |
Amount LEDs | 731 |
General
EAN | 7439628538559 |
---|---|
Brand | HOFTRONIC |
Warranty | 5 year |
Certifications | CE, RoHs, SAA |
Warranty exemption | Not installed or used according to the manual |
Installation
Ground wire | Yes |
---|---|
Placement type | Ceiling, Hanging |
Connection voltage | 100-277V AC |
Suitable for ceiling type | Concrete |
Suitable for indoor outdoor | Indoor & outdoor |
Suggested ceiling height | >10 Meter |
Packaging
Packaging type | Box |
---|---|
Packaging width | 380 mm |
Packaging height | 185 mm |
Packaging length | 380 mm |
Quantity in packaging | 1 |
Quantity mastercarton | 1 |
