Home Brands Ecodim Set of 4 dimmable LED Wall light Dallas M black 12 Watt - 3000K - Up & Down light - IP54 - Incl. dimmer with remote control

Back to overviewBack

HOFTRONIC™ - Set of 4 dimmable LED Wall light Dallas M black 12 Watt - 3000K - Up & Down light - IP54 - Incl. dimmer with remote control

Enlarge image

Image 1 / 10

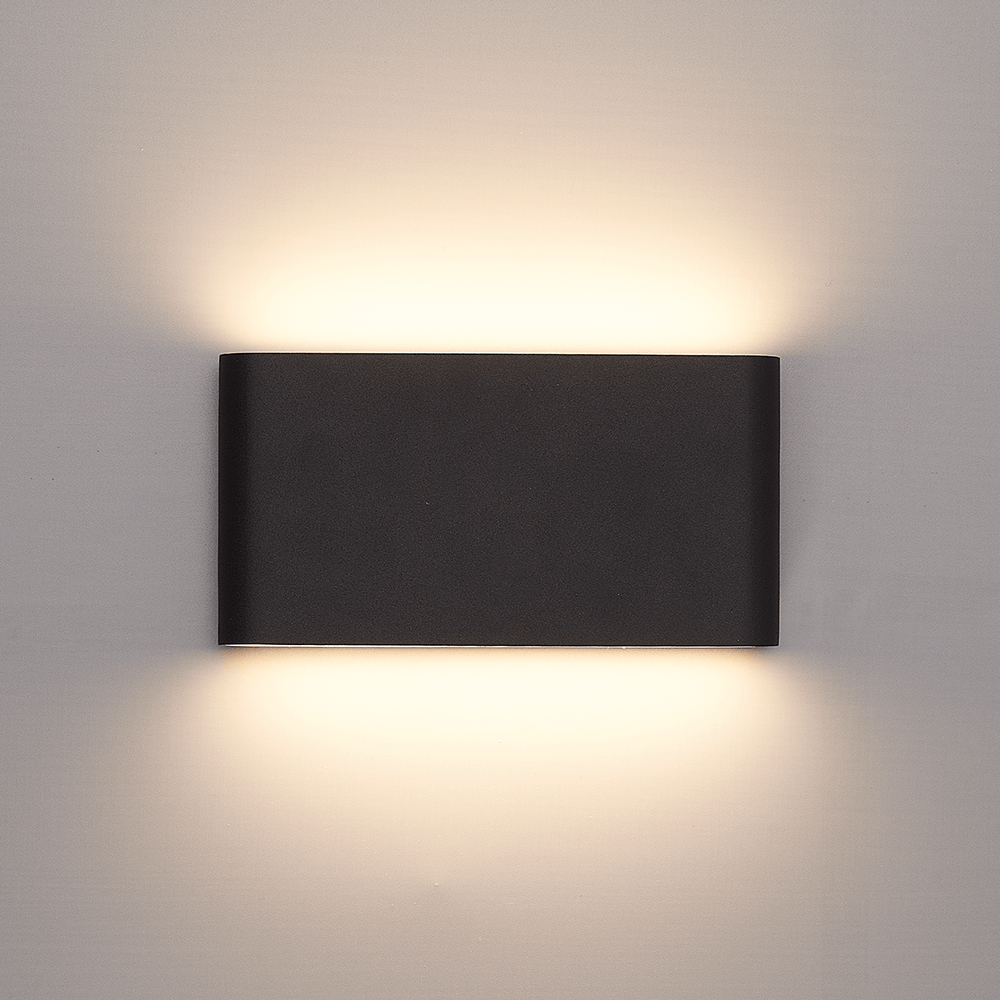

Dimmable LED wall light 12 Watt suitable for both indoor and outdoor use. Because of its perfect IP54 watertightness, it is extremely suitable for humid areas such as bathrooms and gardens.

Product information sheet

222,27

excl. VAT

268,95

incl. VAT

Article number: 5426537

In stock

268,95

Incl. 21% VAT

- +

<strong>Deliverytime </strong> 2-3 Days* You still got 03:39 hours

Free shipping from 50,-*

Delivery time, 1-3 Working days*

E-Trusted certified shop

Order before 10 pm, delivery time 2-3 days!

30 day return

Personal professional product advice

Lowest price guarantee

Specifications

Watts:	12 Watt
Luminous flux:	1200 Lumen
Input power:	220-240V AC
Light color:	Warm white
Color temperature :	3000K
Beam angle:	130 °
Including light source:	Yes
Replaceable light source:	No
Dimmable:	Yes
IP-rate:	IP54
Material:	Aluminum
Color:	Black
RAL code:	9004
Dimensions:	175 x 28 x 90 mm
Certification:	CE, EMC, ROHS
Life span:	30,000 hours
Working temperature:	-10°C ~ 40°C
Warranty:	3 years
Energy label new:	F
EAN:	8720365426537
Supplier	HOF Trading B.V.

Product description
Set of 4 dimmable LED wall light Dallas M black IP54 splash-proof 3 years warranty incl. dimmer with remote control!

This Modern design LED wall lamp has a unique shape. This LED wall lamp is made of low maintenance aluminum which is coated with a coating layer. This lamp is resistant to the heaviest weather influences and this LED wall lamp is also equipped with an IP54 protection class, which means that this LED wall lamp is suitable for outdoor use and also for damp interior spaces such as your bathroom.

What do you need to pay attention to when installing?

These modern outdoor lamps come standard with GU10 fittings, GU10 dimmable LED light sources, a wireless LED dimmer & RF remote control. The installation of this complete set is done in a blink of an eye, this is because everything is delivered complete with this set.
1. First, turn off the power of the groups you are going to work with!
2. Once the power is off, you can connect the wires to the wireless LED dimmer, connect the wires to the N (neutral) and L (life) points. From here, the power wires can be further connected to the outdoor lamps.
  Please note that the input voltage must not be other than 100-240V AC!
3. Once the outdoor lamps and the LED receiver are installed, the wireless remote control can be connected to the LED dimmer. You can do this very easily by first switching the power supply back on.
4. Now press 1 time briefly on the "Learn" button of the LED dimmer, then select a group on the remote and press "l" or "O" of the selected group. After this, the linked lamps will flicker once. This means that the installation was successful!
ATTENTION: When installing the LED dimmer outside, you have to take into account that it is mounted in a waterproof mounting box/junction box. This prevents short circuits.

Set of 4 dimmable LED wall light including wireless control

The Dallas wall light comes complete with all accessories for dimming with the remote control. This means that you can dim the wall lamp with the supplied remote control. You only need to connect the LED receiver to the fixture and that is it! Because the LED light source is already incorporated in the lamp, you do not have to buy any more lamps and this LED wall lamp is plug & play is ready for installation. The only thing you have to do is to hang the lamp and connect it to the 230 Volt mains.

Wireless dimming provides a lot of convenience. You can operate the lamps from your living room, even if you have installed the lamps outside, you can still dim them from indoors. This is also handy when you are sitting outside on the terrace, then you do not have to walk inside to dim the lamps. This is now done very easily and smoothly via the remote control!
Downloads

Datasheet:

Manual:

Set of 4 dimmable LED wall light Dallas M black IP54 splash-proof 3 years warranty incl. dimmer with remote control!

This Modern design LED wall lamp has a unique shape. This LED wall lamp is made of low maintenance aluminum which is coated with a coating layer. This lamp is resistant to the heaviest weather influences and this LED wall lamp is also equipped with an IP54 protection class, which means that this LED wall lamp is suitable for outdoor use and also for damp interior spaces such as your bathroom.

What do you need to pay attention to when installing?

These modern outdoor lamps come standard with GU10 fittings, GU10 dimmable LED light sources, a wireless LED dimmer & RF remote control. The installation of this complete set is done in a blink of an eye, this is because everything is delivered complete with this set.

First, turn off the power of the groups you are going to work with!
Once the power is off, you can connect the wires to the wireless LED dimmer, connect the wires to the N (neutral) and L (life) points. From here, the power wires can be further connected to the outdoor lamps.
Please note that the input voltage must not be other than 100-240V AC!
Once the outdoor lamps and the LED receiver are installed, the wireless remote control can be connected to the LED dimmer. You can do this very easily by first switching the power supply back on.
Now press 1 time briefly on the "Learn" button of the LED dimmer, then select a group on the remote and press "l" or "O" of the selected group. After this, the linked lamps will flicker once. This means that the installation was successful!

ATTENTION: When installing the LED dimmer outside, you have to take into account that it is mounted in a waterproof mounting box/junction box. This prevents short circuits.

Set of 4 dimmable LED wall light including wireless control

The Dallas wall light comes complete with all accessories for dimming with the remote control. This means that you can dim the wall lamp with the supplied remote control. You only need to connect the LED receiver to the fixture and that is it! Because the LED light source is already incorporated in the lamp, you do not have to buy any more lamps and this LED wall lamp is plug & play is ready for installation. The only thing you have to do is to hang the lamp and connect it to the 230 Volt mains.

Wireless dimming provides a lot of convenience. You can operate the lamps from your living room, even if you have installed the lamps outside, you can still dim them from indoors. This is also handy when you are sitting outside on the terrace, then you do not have to walk inside to dim the lamps. This is now done very easily and smoothly via the remote control!
